| S040 Air humidification system Fog Chiller for Outdoor Misting System Plus 1pcs Water Sprayer 5L/min Pump 12V water pump |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -28% |
| Product id | 33002372279 |
| Vendor | CoolMist Store |
| Category | Home & Garden - Garden Supplies |
Description :

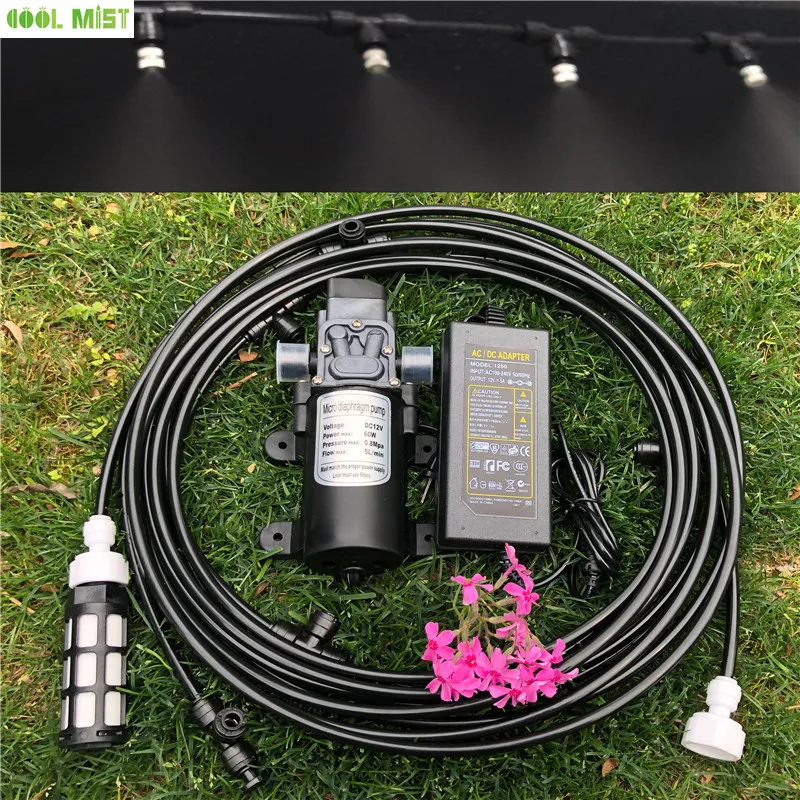

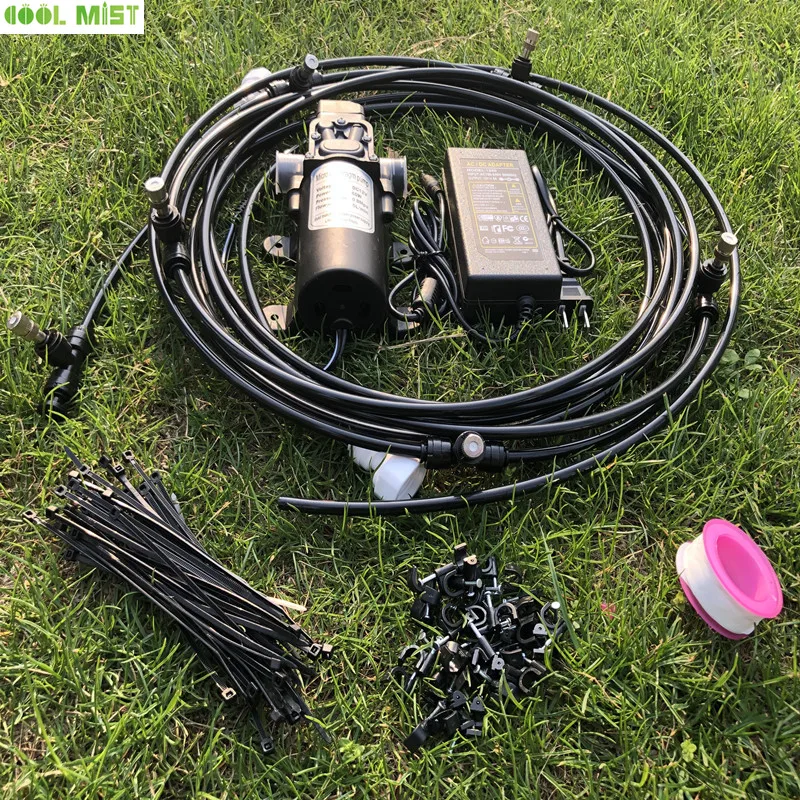

Packing list:
Diaphragm Pump：1piece
Power supply : 1 piece
Total misting line: 6M misting system
White female connector: 2 pieces
Slip Lock Mist nozzles: 6 pieces
End plug: 1 piece
Inlet filter head: 1pcs
20 Saddle clamps
20 cable ties
Seal tape: 1 Roll
(all other items in photos and video are for illustration only)
Description:
Nozzle Orifice: Default 0.4mm or 0.5mm, you can remark it in your order if you need other size(0.15mm-0.6mm orifice option)
Nozzle Material: Brass body, nickle plating.
Nozzle feature: Slip lock
White connector: Female thread size - 1/2"
Mist hose: Food grade material, 1/4" size;
Function: Cooling, Humidification, dedusting and Garden Micro irrigation.
Details

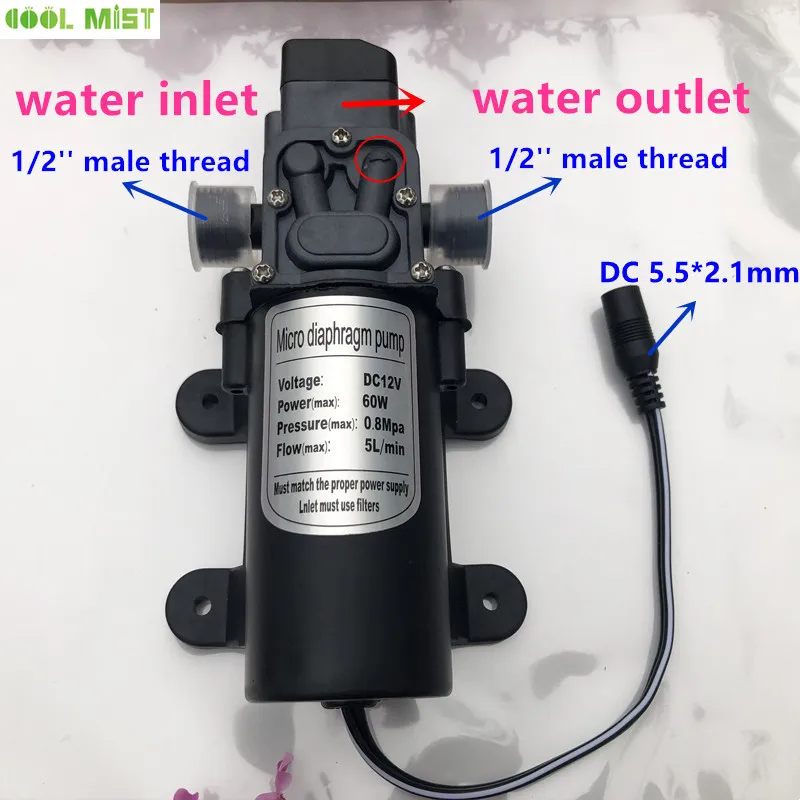

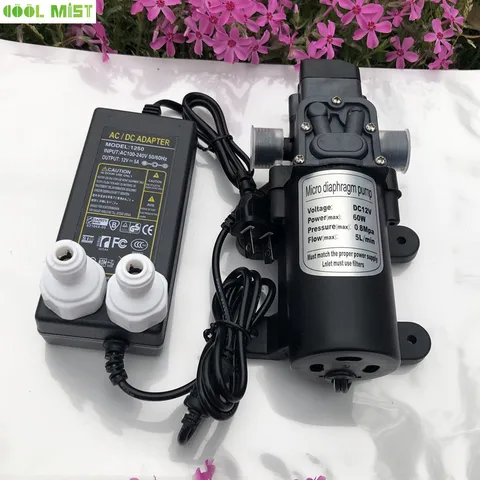

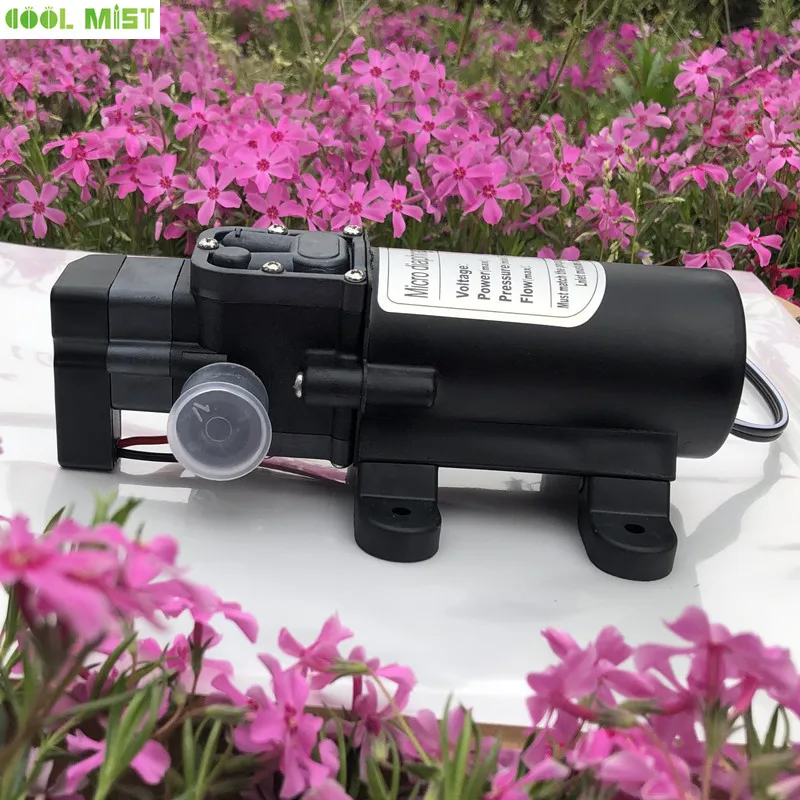

Pump description:
Caution:pump should be used in dry condition,cannot submerge into water

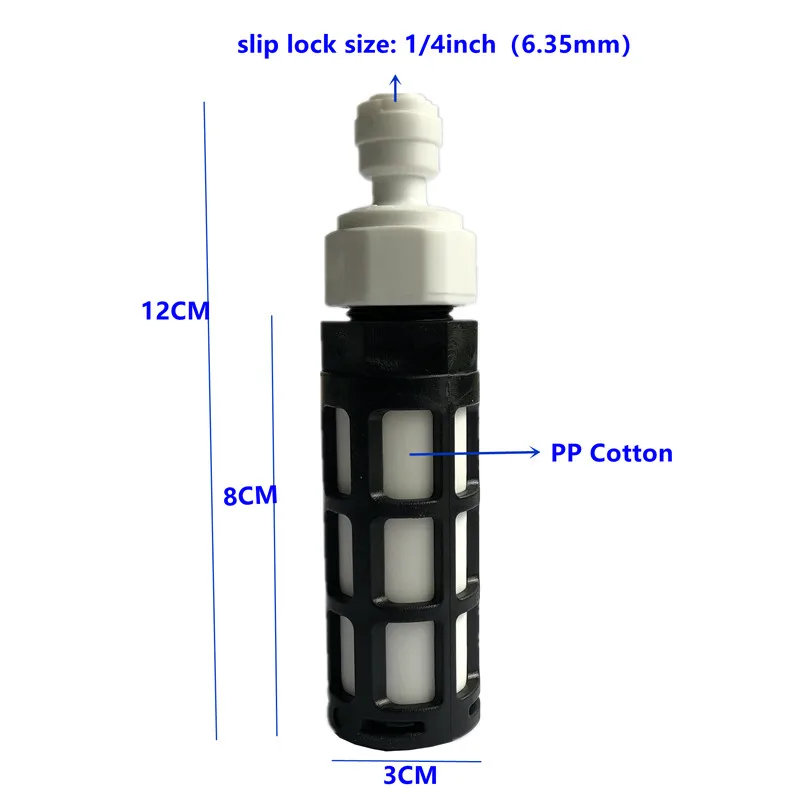

Inlet filter head:
Hose: 1/4'' size, food grade material

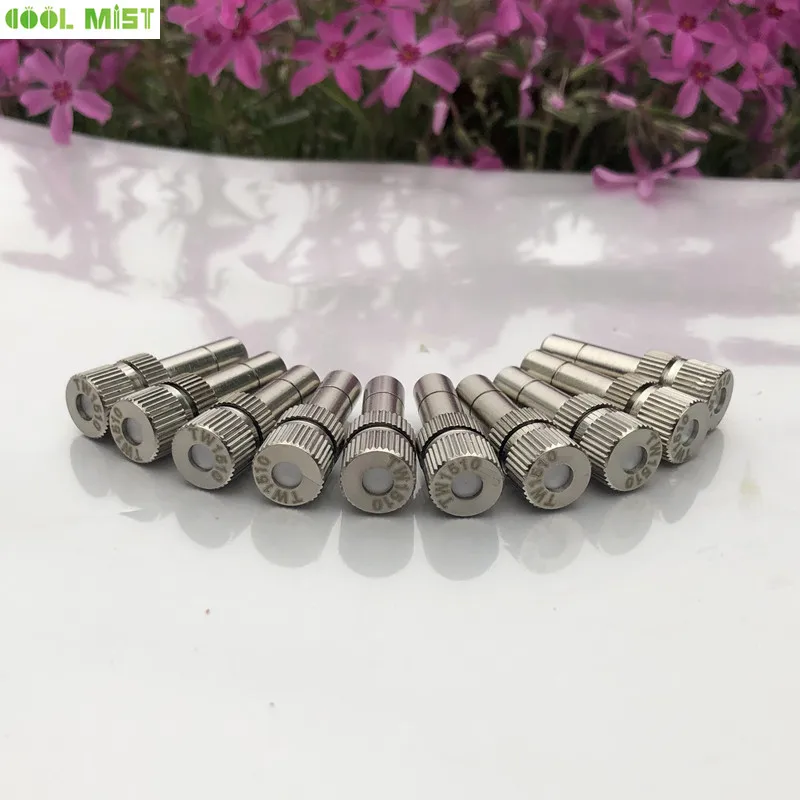

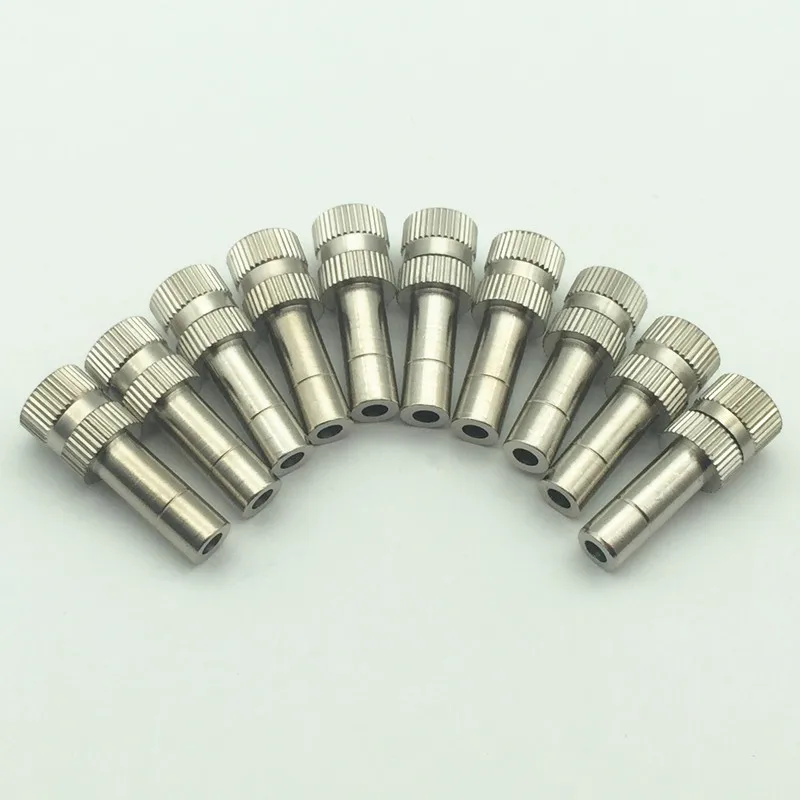

Nozzle: Default 0.4mm or 0.5mm orifice.

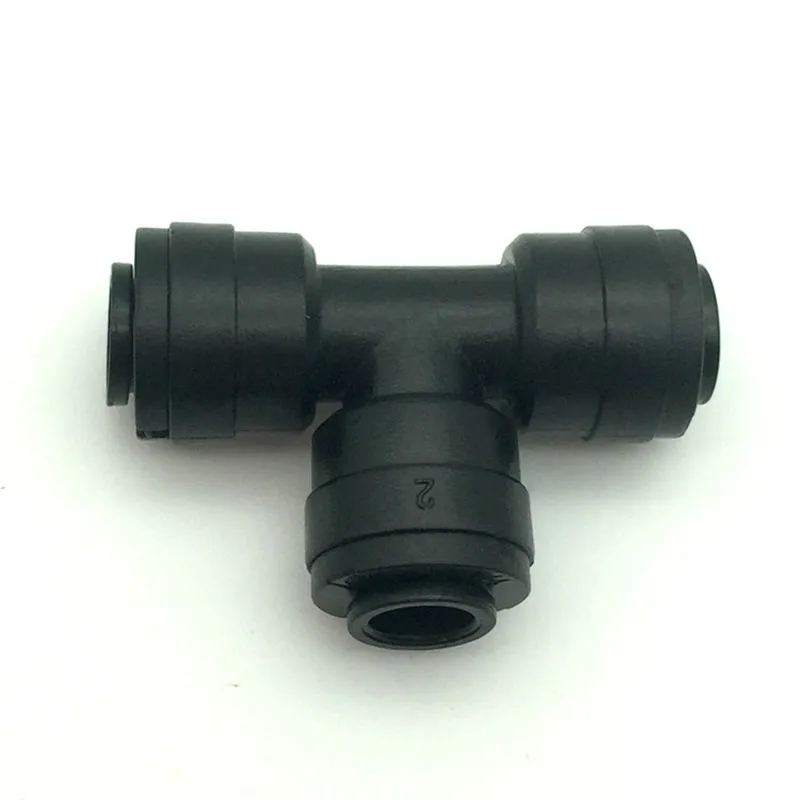

Tee:
Connector:

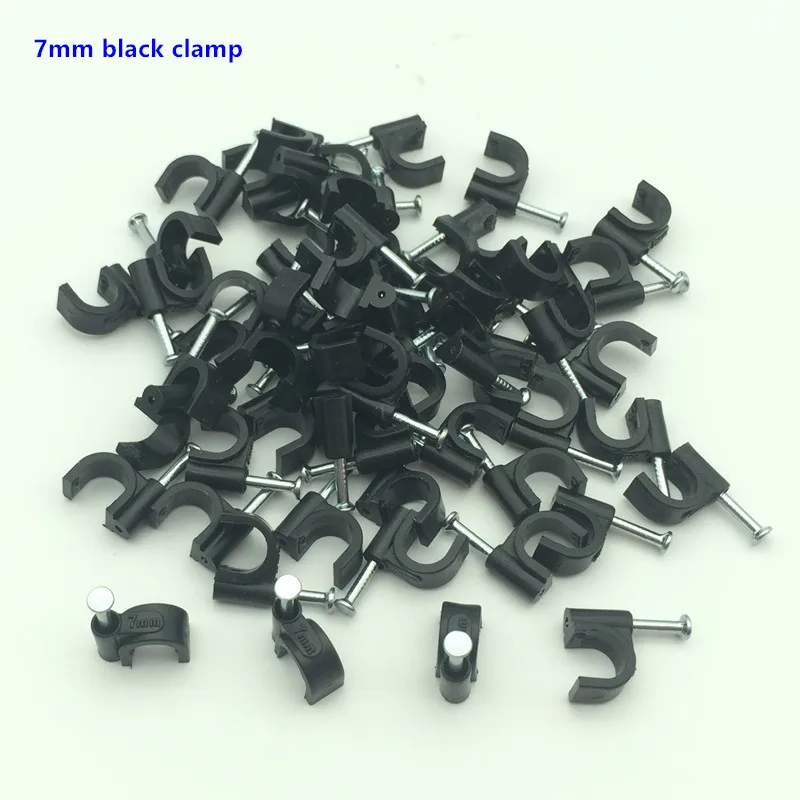

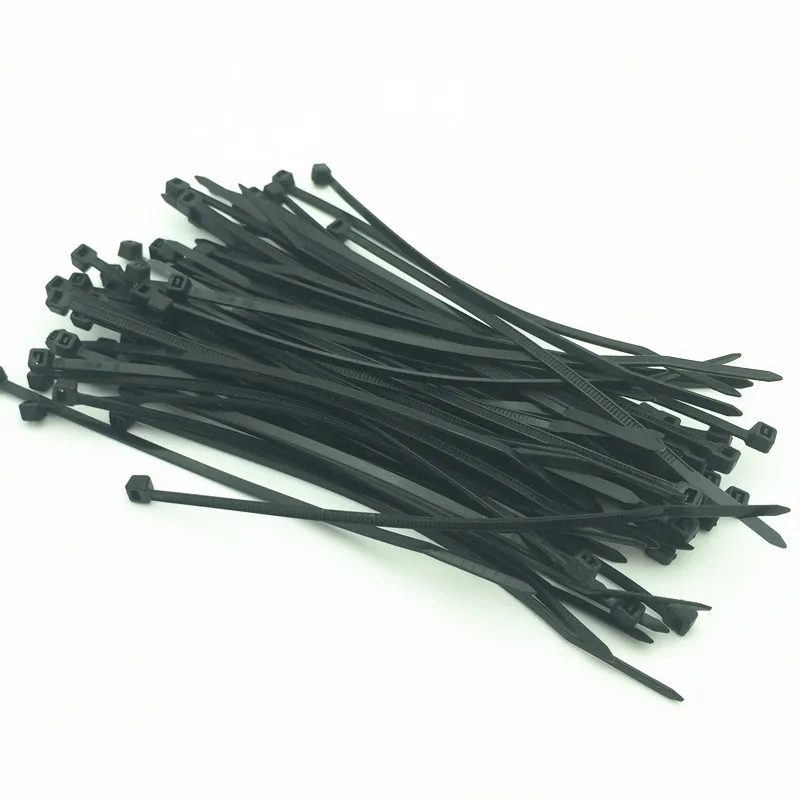

Cable ties and Clamps:

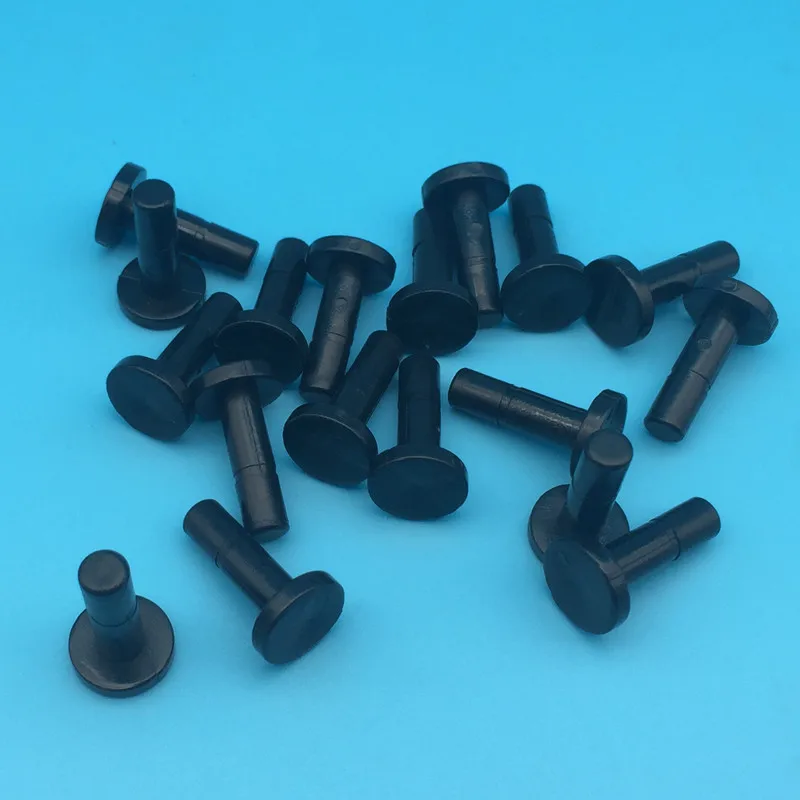

End plug:
Design Features
Water inlet port can absorb water by itself then spray mist from nozzles on water outlet, which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.
Instruction as below:
Installation Steps:
1. Keep the 3M water inlet totally immersed into the tank.
2. Connect hose and pump with 1/2'' white connectors, note the arrow direction of inlet and outlet on the pump.
3. Connect the power supply to wash the system for 1 minute to purge the system and remove any impurities.
4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.
5. Turn on the power to wash the system for 2 minutes to insure that the system is fully purged.
6. Turn off the power and install the last nozzle into the fitting with the end plug.
7. Fix the misting line by the cable ties saddle clamps provided.
8. Turn on power then jets will work, enjoy the cooling misting system.
9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.
Application as below:
Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc
Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.
Best Price Comparison With S040 Air humidification system Fog Chiller for Outdoor Misting System Plus 1pcs Water Sprayer 5L/min Pump 12V water pump
S123 High pressure 0.2L/Min mini fog machine with 6pcs nozzles mister set dry fog misting system for patio cooling cooling
Buy Now On Aliexpress
S250 Water Spray Kit 10M Wet Fog Garden Nebulizer Outdoor Misting System water mist for Greenhouse Humidification Patio Cooling
Buy Now On Aliexpress
S043 Hot Sale and High Quality Outdoor Water Spray Mist Pump 12V DC Misting Pump Water Pump Sprayer
Buy Now On Aliexpress
S088 CE 1L/min 220V 60Bar high pressure portable fog machine for patio mist system humidifier mist maker
Buy Now On Aliexpress
S029 Tap water pressure water sprayer 12M 40ft garden mist spray set low pressure atomization system patio cooling misting kits
Buy Now On Aliexpress
S154 DIY 10M misting kits including 15pcs mist nozzles 13pcs nozzle fittings for gazebo misting cooling system
Buy Now On Aliexpress
S004 High pressure fine atomizing nozzle water spray cooling humidifier 0.1mm-0.7mm orifice fog brass nozzle sprayer 50pcs/lot
Buy Now On Aliexpress
S297 White Black 20M garden electric pump misting spray system nebulizer for flowers plant greenhouse garden irrigation injector
Buy Now On Aliexpress

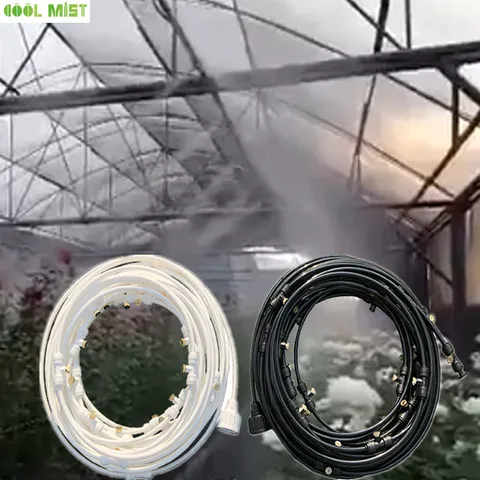

White 6-18 meters garden electric pump misting spray system nebulizer for flowers plant greenhouse garden irrigation
