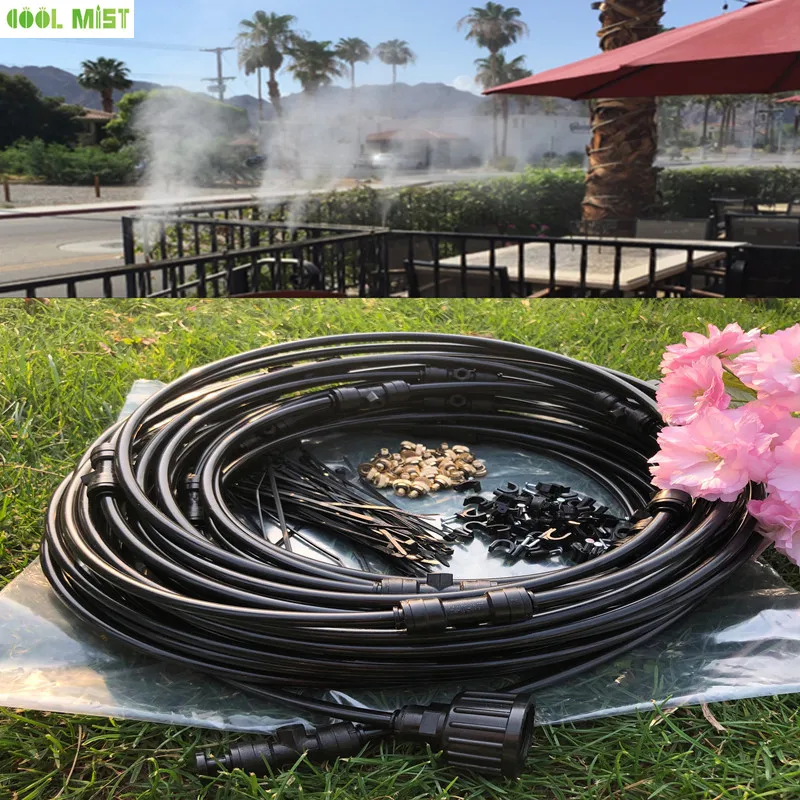

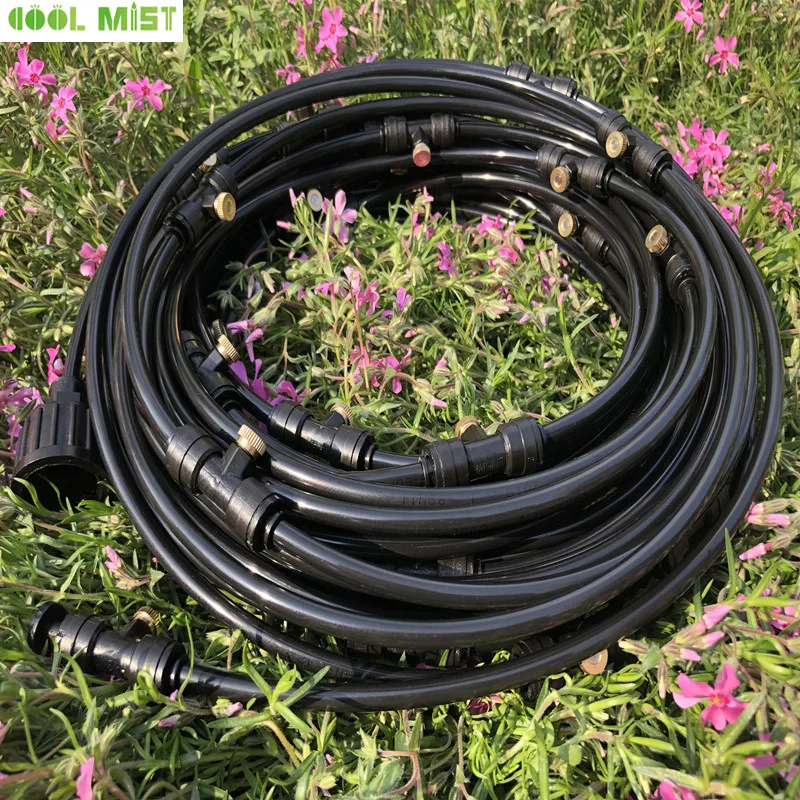

| S080 Pack 26pcs mister head 18M low pressure greenhouse mist cooling sprayer system 1/4'' hose 0,1mm-0.8mm nozzle orifice option |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -34% |
| Product id | 33010150777 |
| Vendor | CoolMist Store |
| Category | Home & Garden - Garden Supplies |
Description :

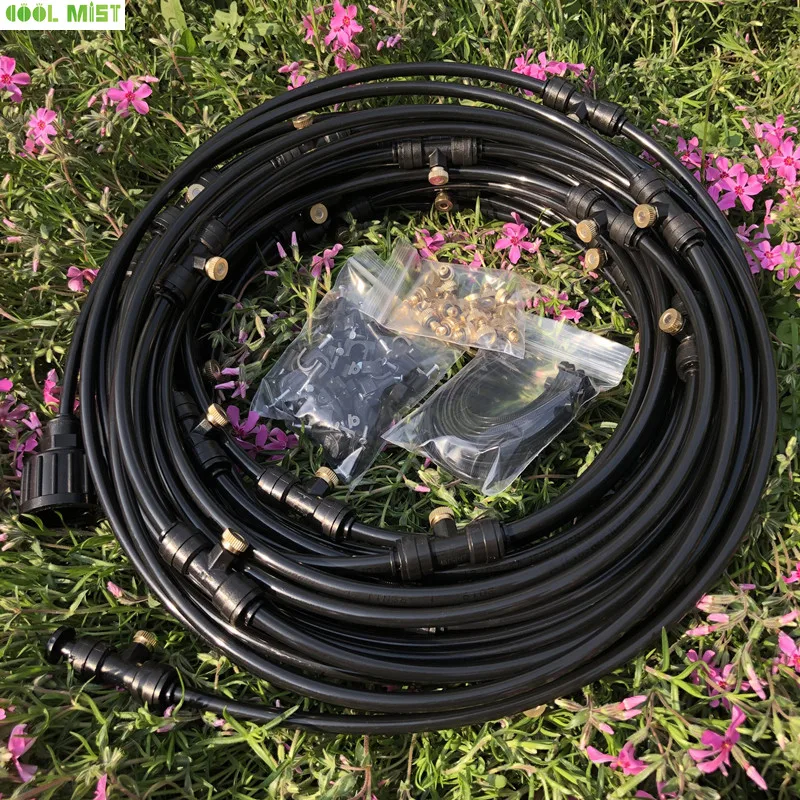

Packing list:
(all other items in photos are for illustration only)
Description:
Nozzle Orifice: 0.1mm-0.8mm nozzles orifice option
Nozzle Material: Brass body with stainless steel orifice inside.
Nozzle Thread: 10/24UNC
Standard water tap adapter: Thread Size - 3/4"
Mist hose: Food grade material, 1/4" size;
Function: Can work under normal water pressure(2-3kg).

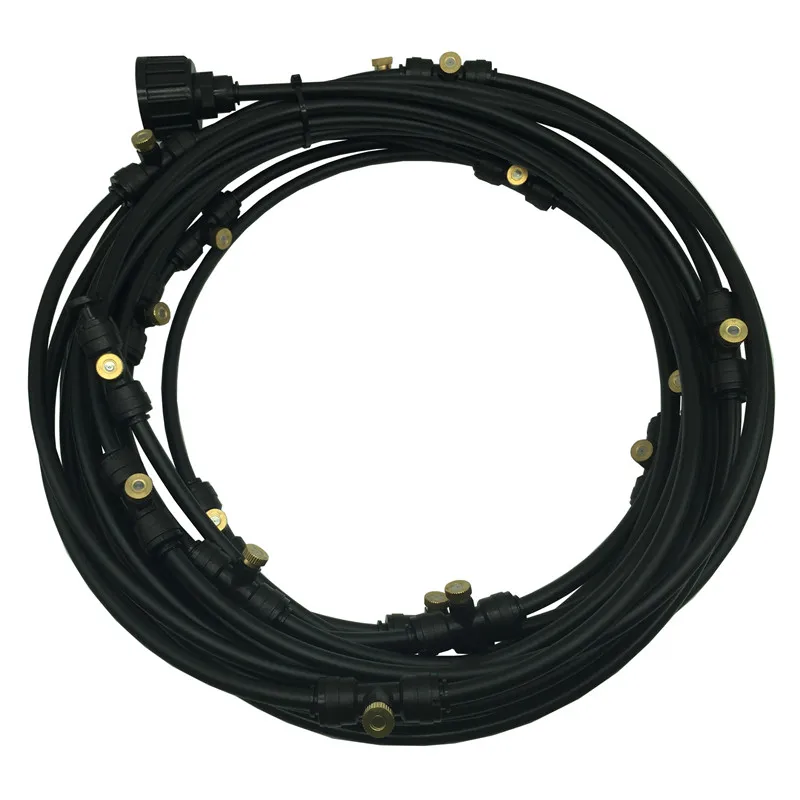

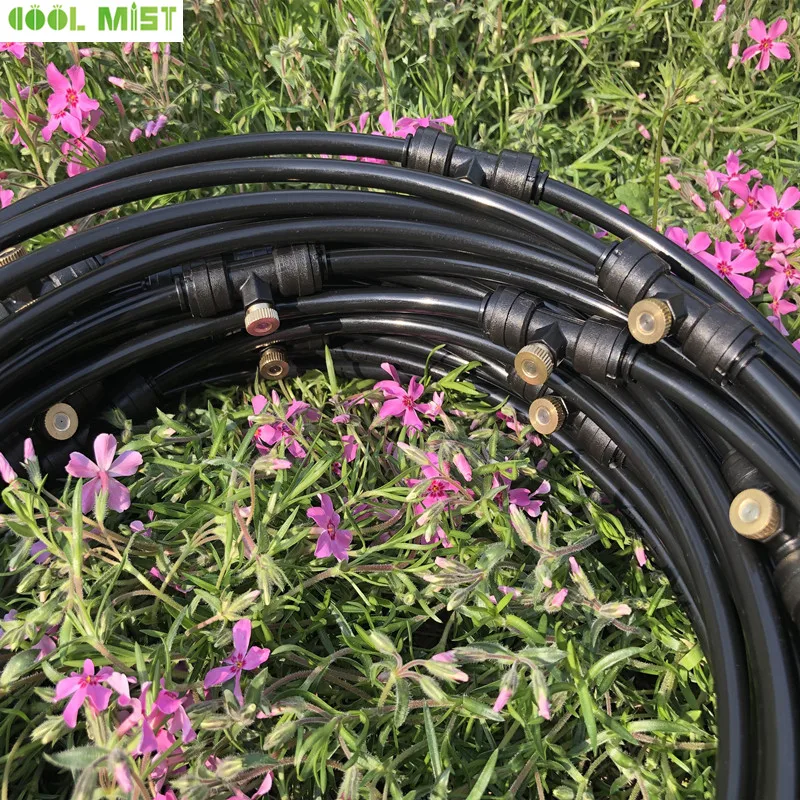

Hose:

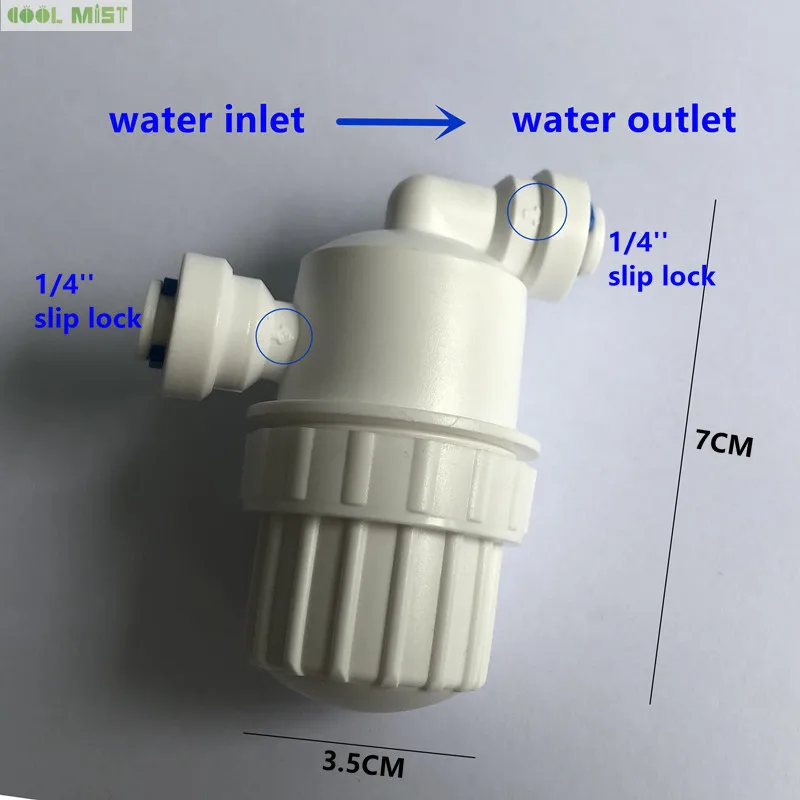

Filter:

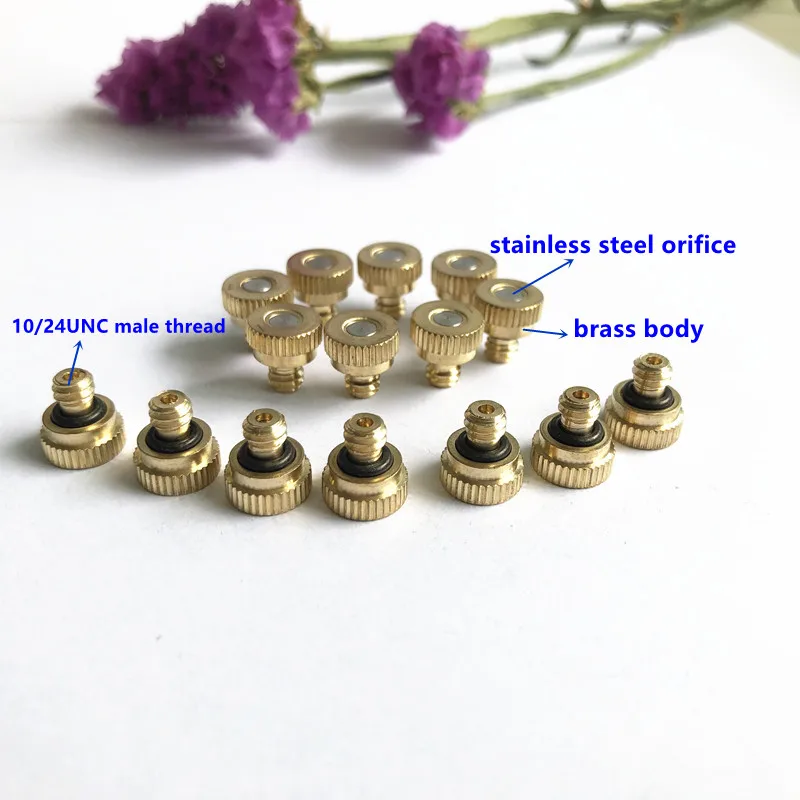

Nozzle:

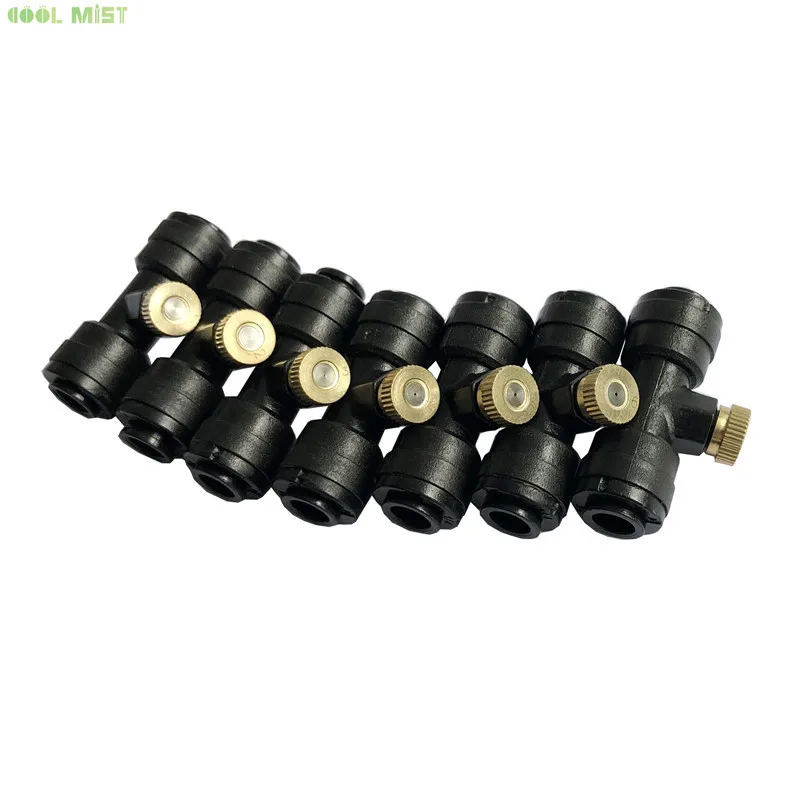

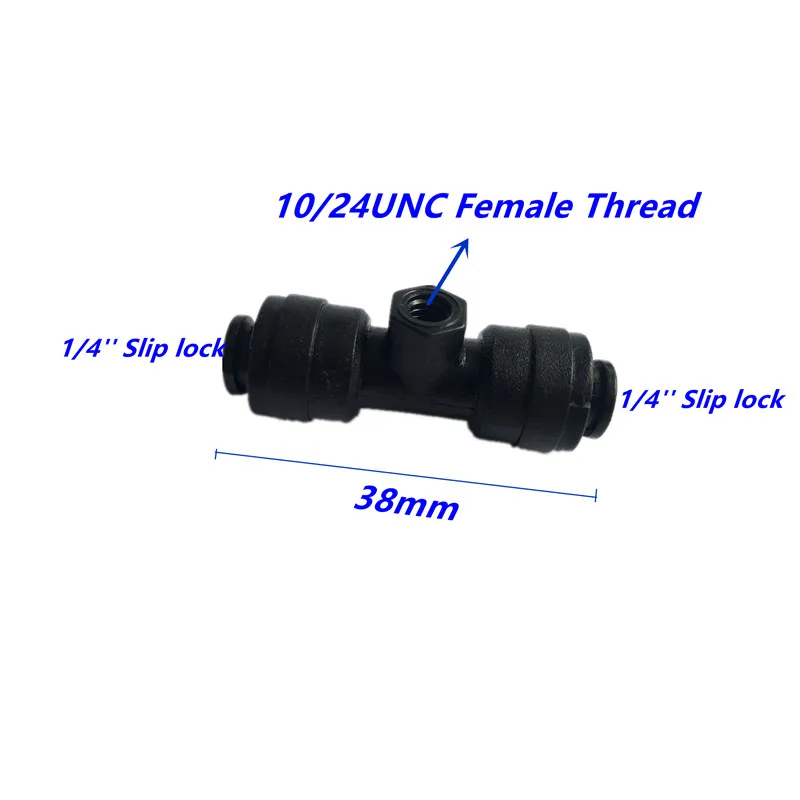

Fitting:

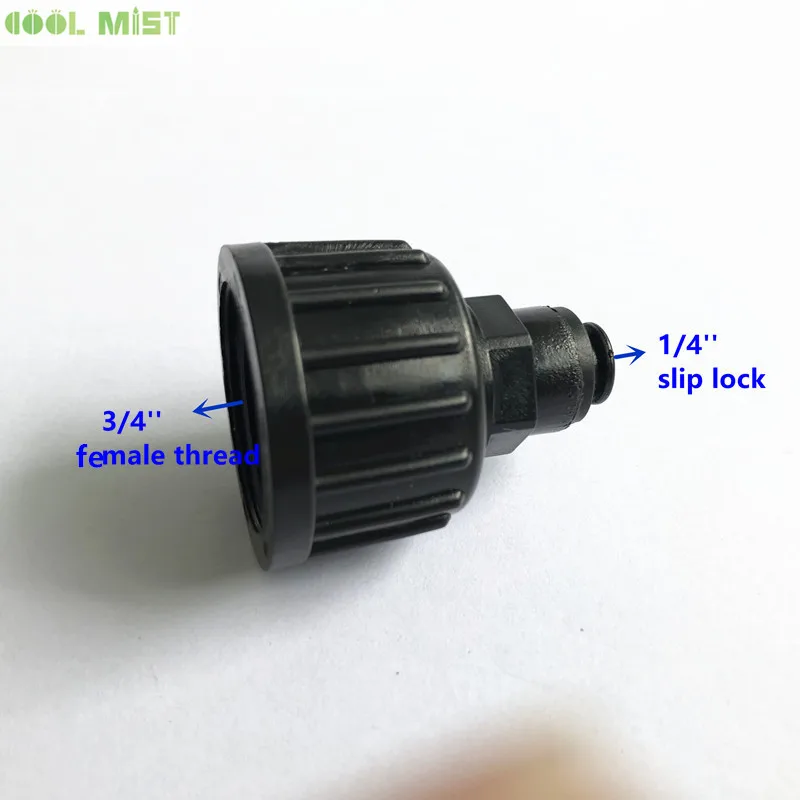

Adapter:

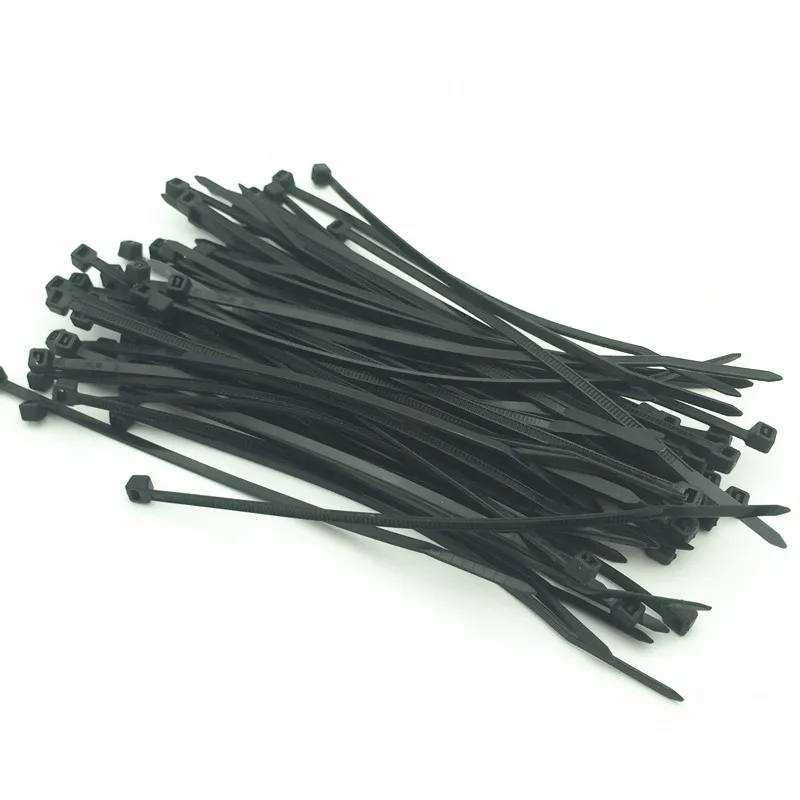

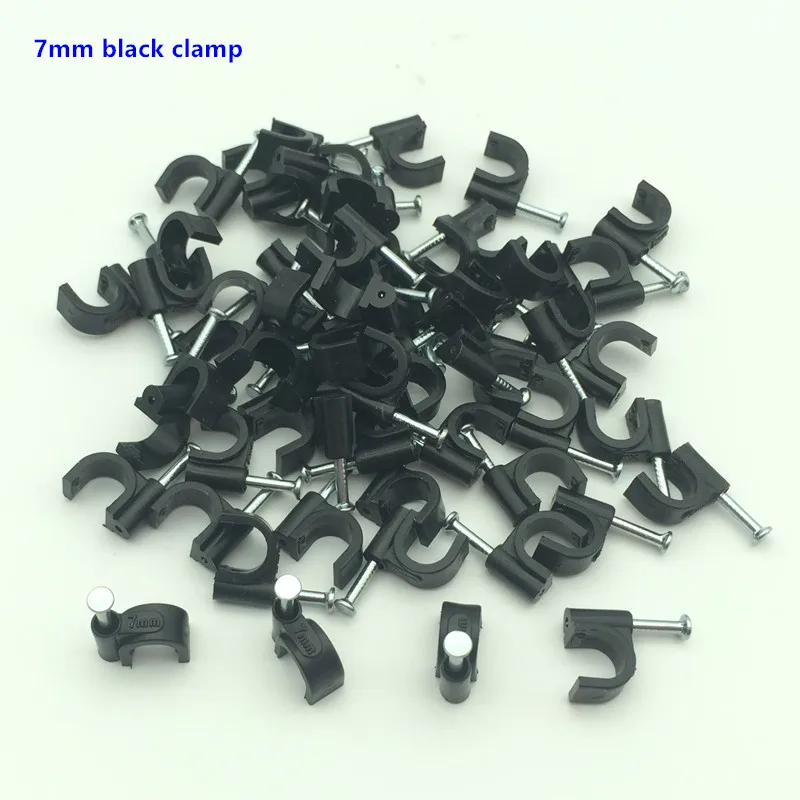

Cable ties and Clamps:

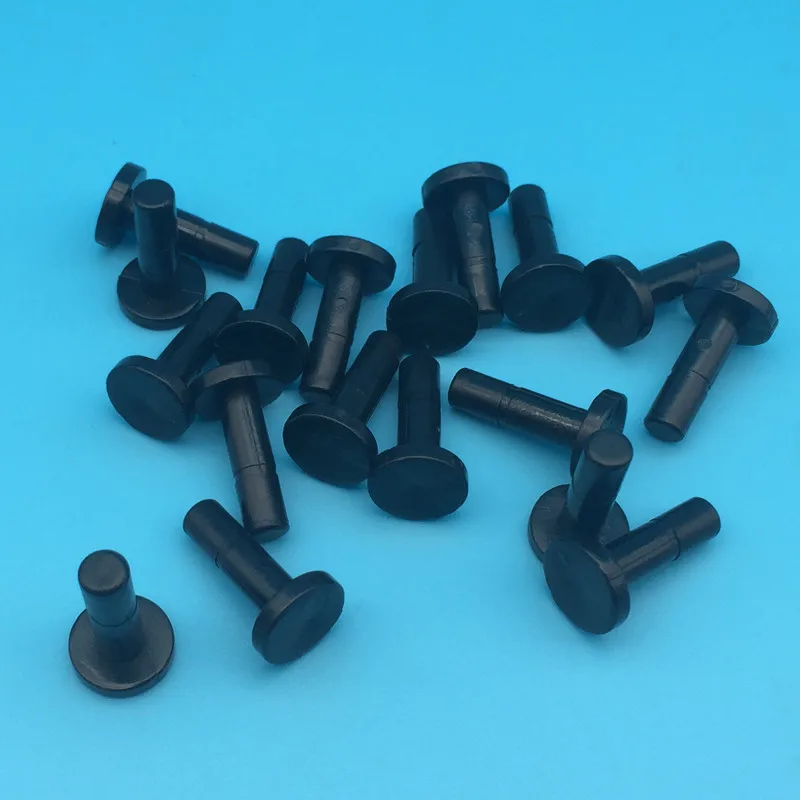

End plug:
Design Features
The brass fine atomizing nozzle is a brass main body with a stainless steel nozzle core and stainless steel guide vane.
The liquid forms a centrifugal vortex in the guide vane, and the fine hollow mist particles are sprayed from the nozzle hole, which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.
Testing one by one in our laboratory:
Instruction as below:

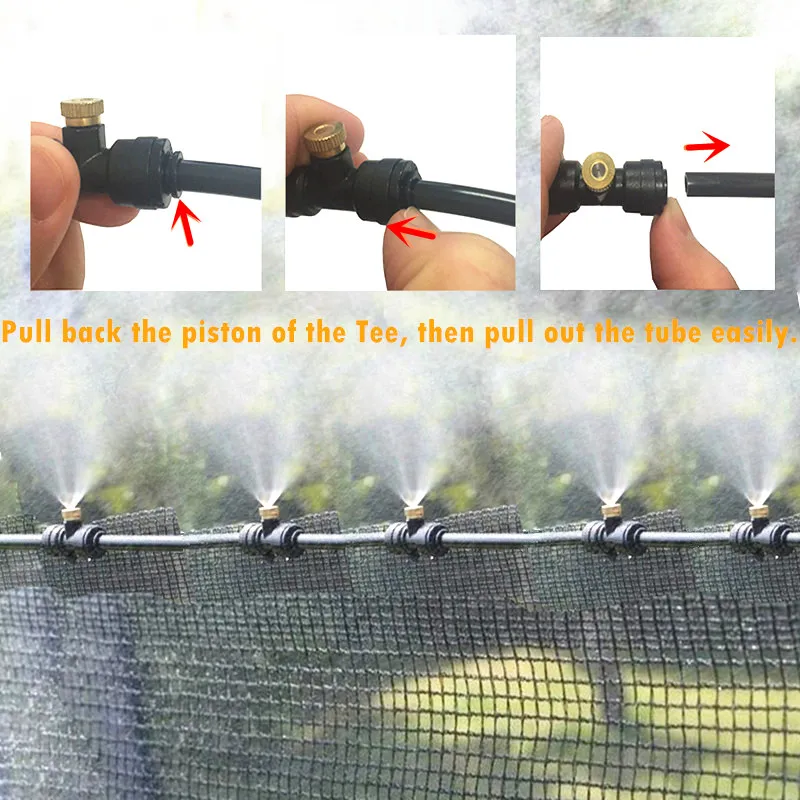

Installation Steps:
1. It is recommended to installed the misting system at a height of 2.5m-3m.
2. Connect the adapter to the water tap.
3. Turn on the water tap to wash the system for 1 minute to purge the system and remove any impurities.
4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.
5. Turn on the water tap to wash the system for 2 minutes to insure that the system is fully purged.
6. Turn the water off and install the last nozzle into the fitting with the end plug.
7. Fix the misting line by the cable ties saddle clamps provided.
8. Turn on the tap slightly until jets are working, enjoy the cooling misting system.
9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.
Application as below:
Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc
Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.
