| Navceker UHD 4K HDMI 2.0 Splitter 1x2 Support HDCP 1.4 3D HDMI Splitter 2.0 4K 1 Input 2 Output Switch Box For Blu-ray DVD HDTV |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -62% |
| Product id | 32867707033 |
| Vendor | Navceker Factory Store |
| Category | Consumer Electronics - Accessories & Parts |
Description :
 |  |  |
 |  |  |
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount.

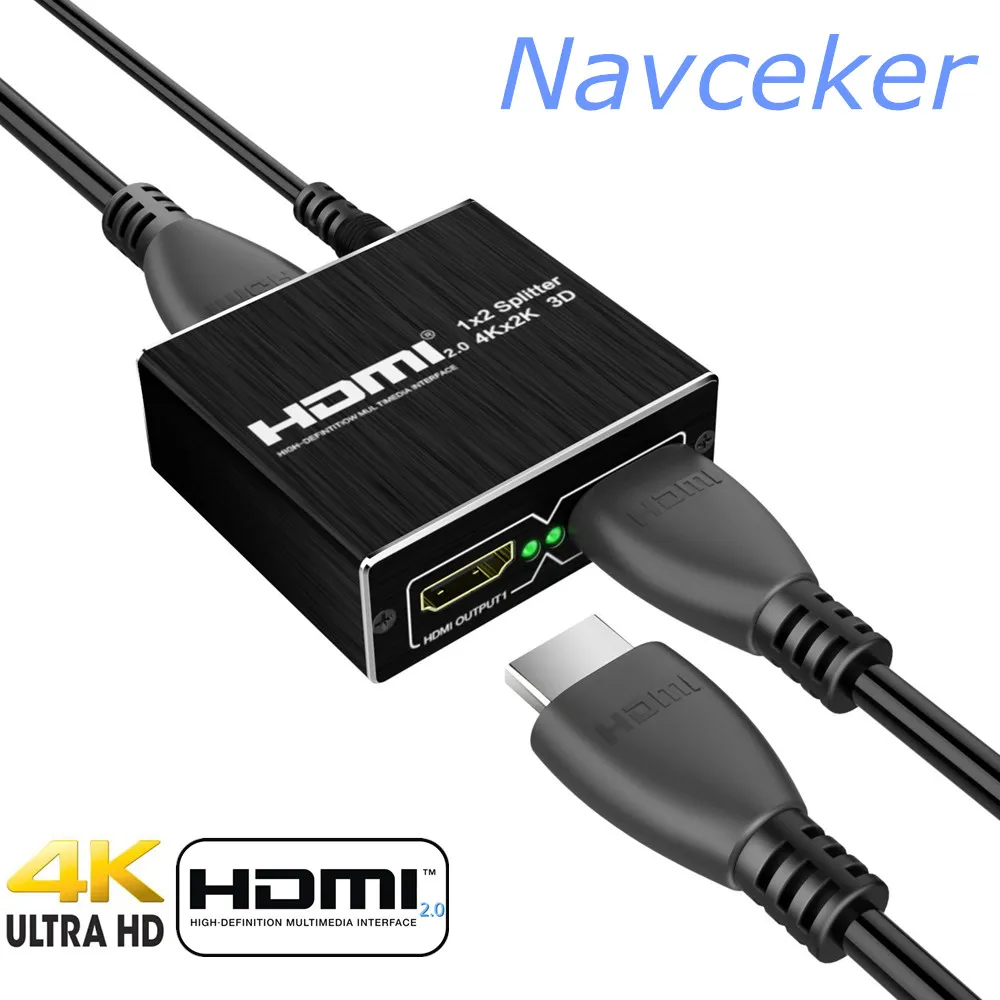

Navceker UHD 4K HDMI 2.0 Splitter 1x2 Support HDCP 1.4 3D HDMI Splitter 2.0 4K 1 Input 2 Output Switch Box For Blu-ray DVD HDTV

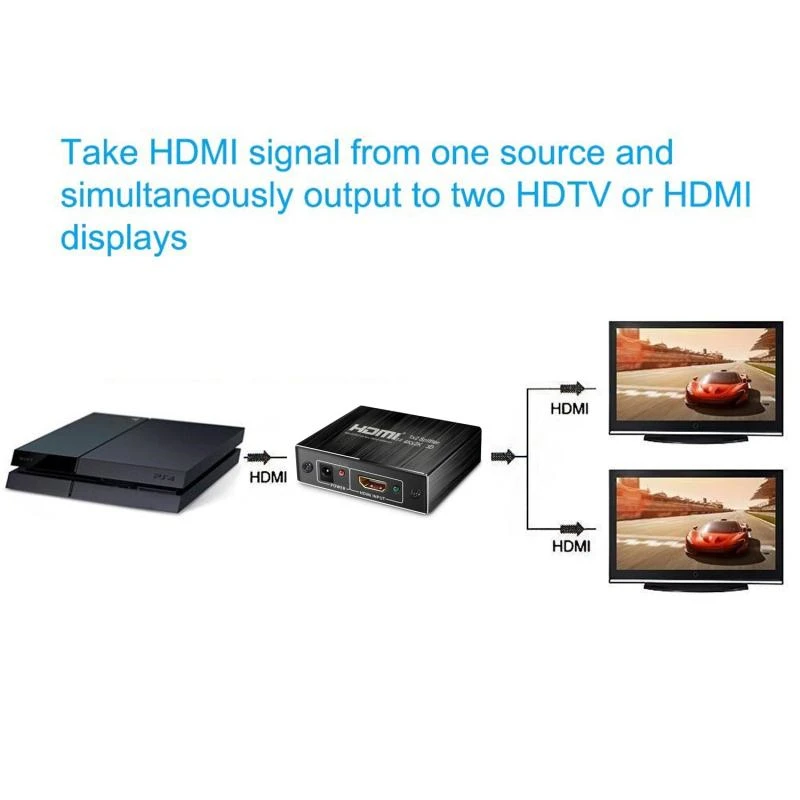

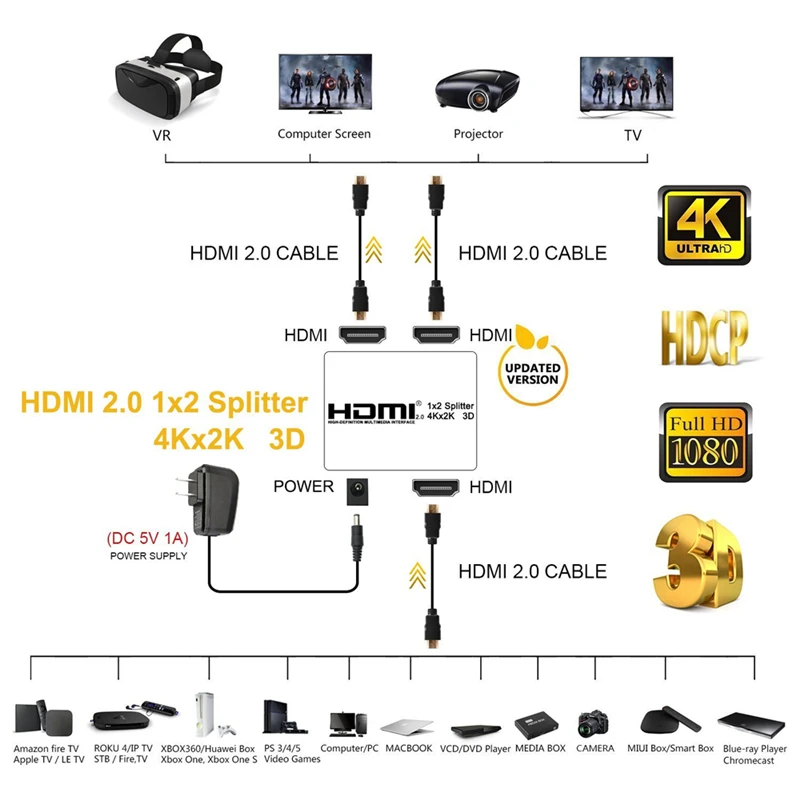

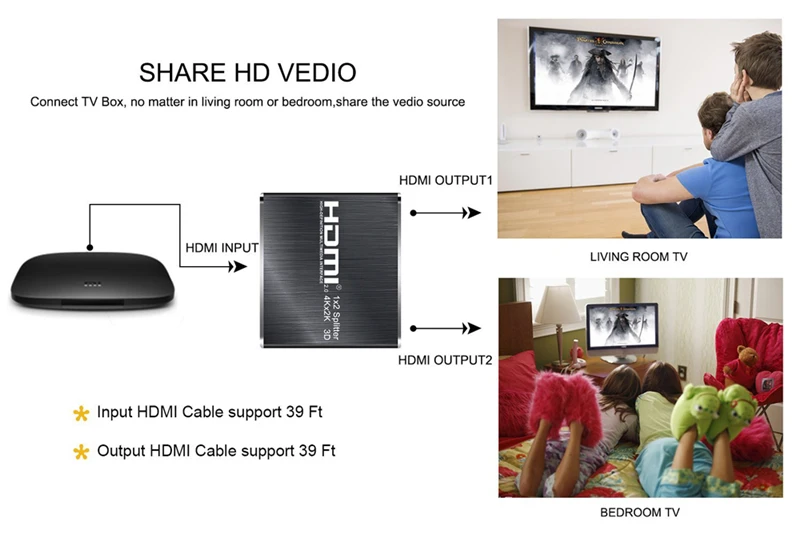

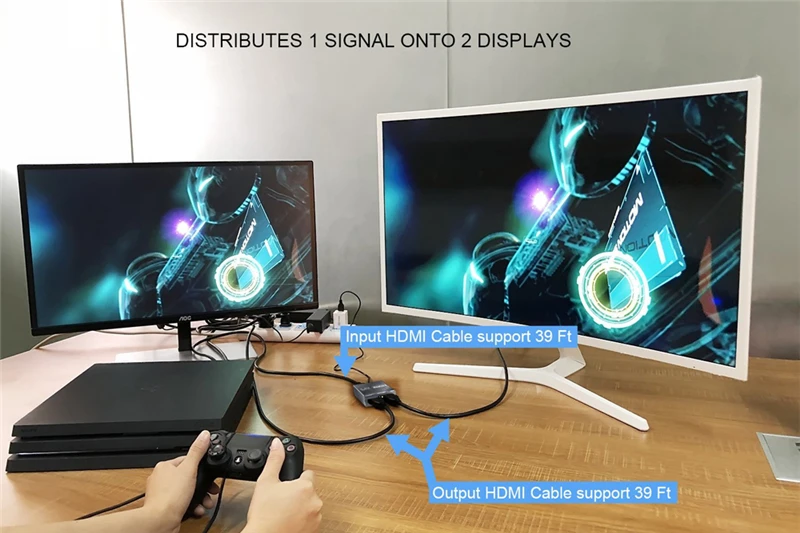

ZY-HS20A, 1x2 HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 4K*2K@60Hz(YUV4:2:0).
- Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
- On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0 specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4 specification.
- Wide Frequency Range: 25MHz-600MHz.
- Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
- Supports jitter Clean capability for more cascadable stages.
- Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
- Supports standard Audio,DSD Audio and HD(HBR)Audio.

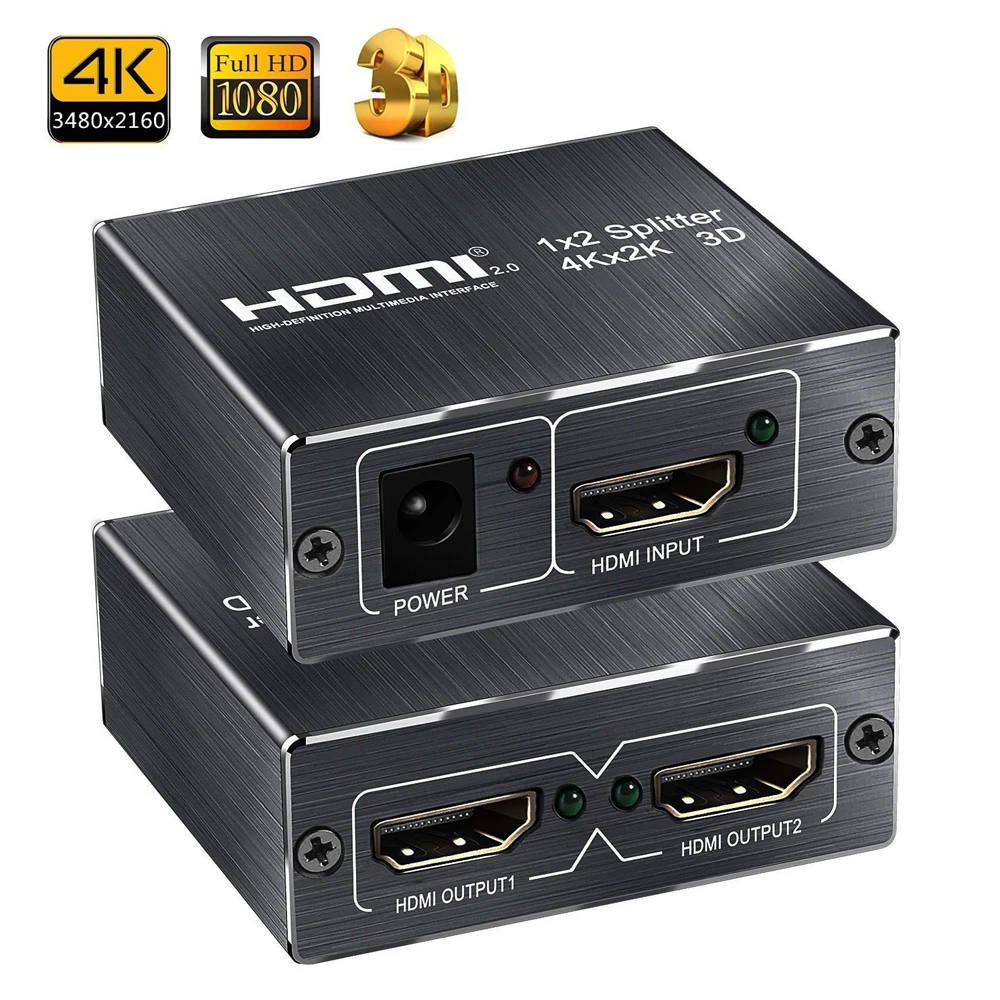

- Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.
- Supports conversion of HDMI signal to DVI/HDMI signal.
- Supports HDMI 2.0,HDCP 1.4(YUV4:2:0) & HDR.
- Supports on-chip 512 byte E-DDC EDID RAM for input port.
- Supports hot plug-play.

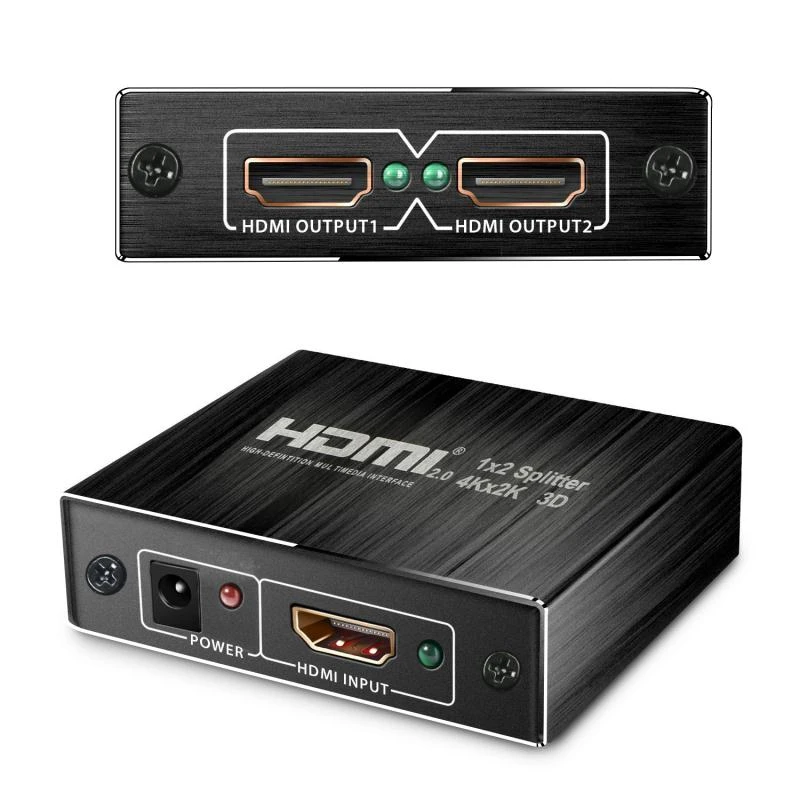

- Support Mode：LED indicates signal and power mode
- Support Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support AWG26/AWG28 HDMI 2.0 cable length: Up to 39 ft
- Cascadable to make more than 2 output ports.
- Provide companion HDCP 1.4 Controller(EPF025R)with integrated HDCP keys.
- Power supply(please refer to technical parameter).
Note:
For optimum performance, we recommend using high quality, certified HDMI cables (24K Golden HDMI Connector,28AWG or 26AWG) in lengths up to 11m / 39ft for all connections.
High-speed HDMI cables are required for 4K and 1080p resolutions.
HDMI version…………………………………………….…………………….....HDMI 2.0, HDCP 1.4
HDMI resolution …………………...................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports video color format ....………………...……..….…........24bit/deep color 30bit, 36bit, 48bit
Supports audio format…….........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………….…….......………............……….……………600MHz
Max baud rate…………………….………………….….…………....................……………18.0Gbps
Input/Output TMDS signal ………….…………………………..…...................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …………………………………………….....................……..5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………≤39ft AWG28 HDMI standard cable
Output cable distance…………………………….………...............≤39ft AWG28 HDMI standard cable
Max working current………………………………..…………...................………………1200mA
Power adapter format Input..……………........................AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating Temperature range……..………...................…….…….………………………(-15 to +55℃)
Operating Humidity range………………………….….………................5 to 90%RH (No Condensation)

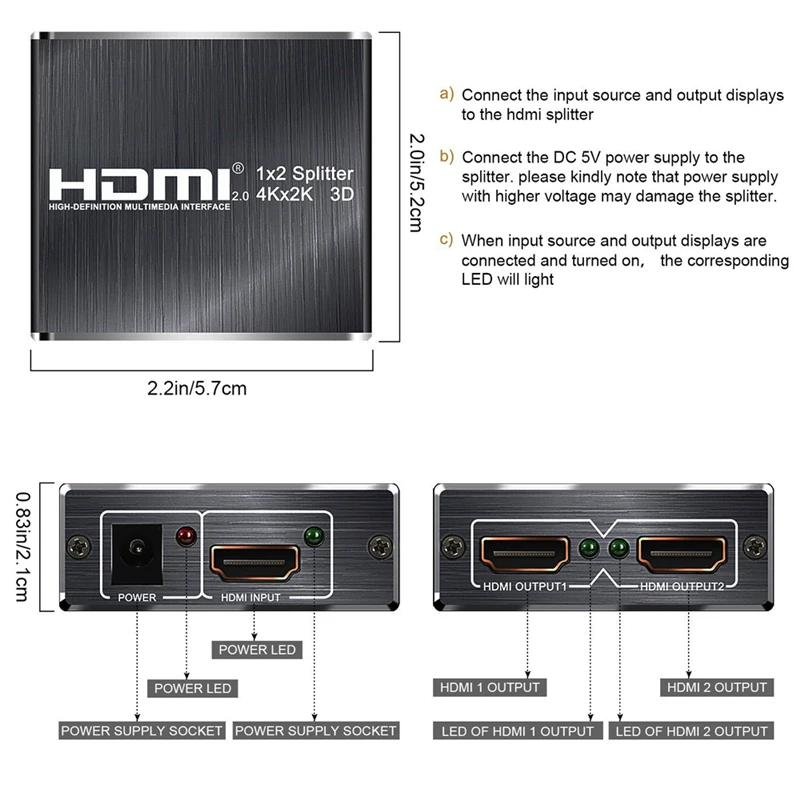

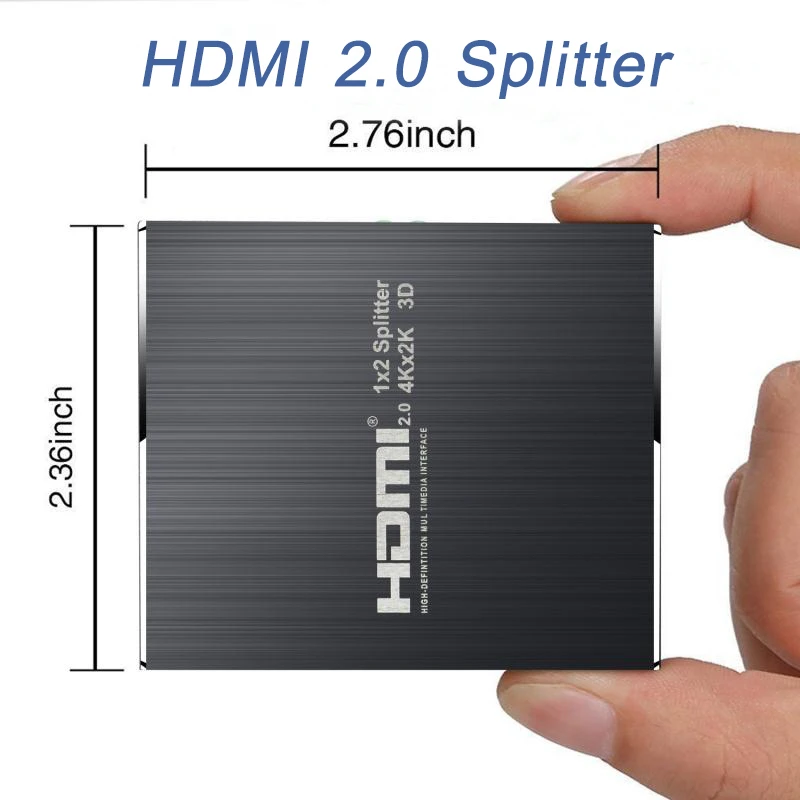

Dimension (L x W x H)………………………….….………...................…........................110x60x20(mm)
Packaging contents
1.HDMI 2.0 1x2 Splitter x1
2.Power Adaptor x1
3.User Manual x1
