| 2020 Best 4K HDMI Extender Transmitter Receiver Over Cat5e/Cat6 RJ45 Ports HDMI Extender Loop 120m HDMI Extender IR For PS4 HDTV |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -65% |
| Product id | 4000218827256 |
| Vendor | Navceker Official Store |
| Category | Consumer Electronics - Accessories & Parts |
Description :
 |  |  |
 |  |  |
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
2020 Best 4K HDMI Extender Transmitter Receiver Over Cat5e/Cat6 RJ45 Ports HDMI Extender Loop 120m HDMI Extender IR For PS4 HDTV
Description:

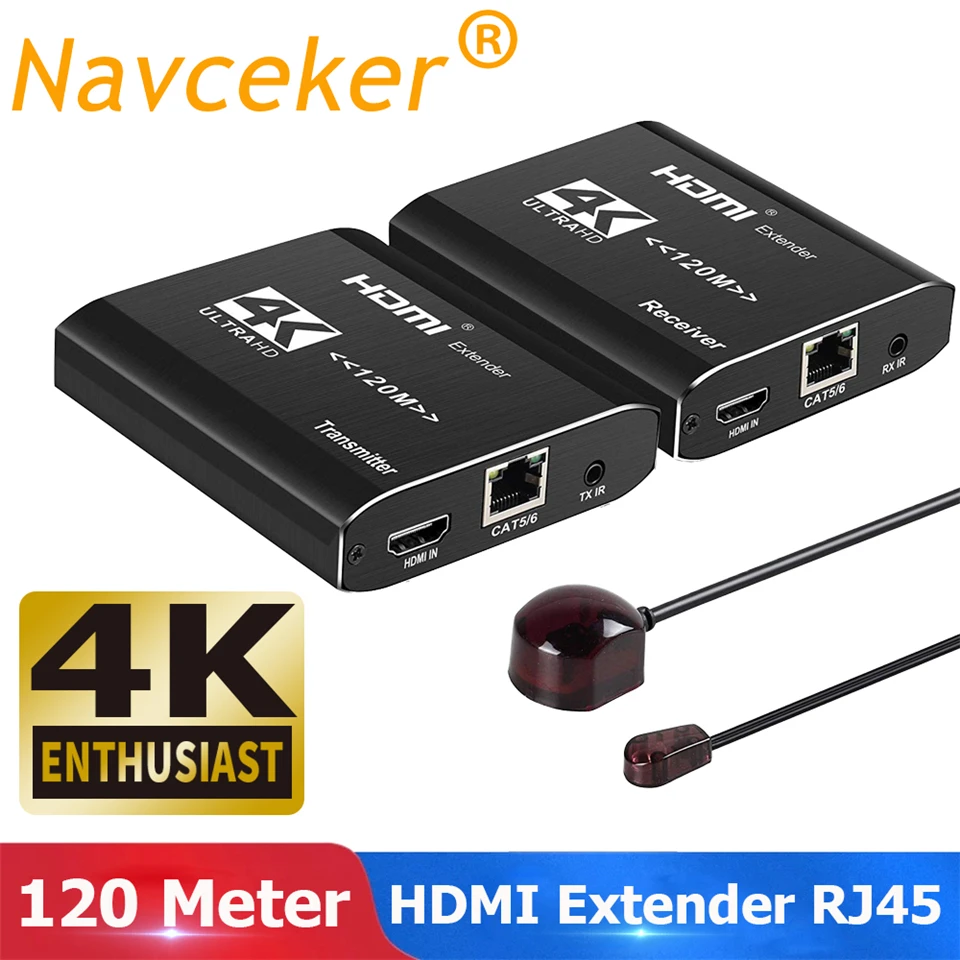

ZY-DT104,Navceker HDMI extender provides extension of 4K HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 3840*2160@30Hz,HDMI loop out,IR remote control and Cascade connection function. Navceker extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:
(1) The Black color(One RX),it is one receiver,If you need extra receivers for Cascade connection,please you choose this.
(2) The Red color (One TX and One RX),It is one transmitter and one receiver for one to one application.
Features:
- Transmits 4K HDMI video and audio signals up to 120m over CAT6,up to 100m over cat5e ;
- Support video resolution up to 3840x2160@30Hz, 3D signal;
- Infrared control:unidirectional 20~60 KHz IR romote control;
- HDMI Loop Out:The transmitter with one local HDMI loop output;
- IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;
- Male to male: one TX to one RX applicataion;
- Male to female:one TX to N RX(Max:12 pcs RX) application with Cascade connection;
- Uncompress,ZERO delay,no loss;
- Compliance with HDMI 1.4 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
· HDMI EXTENSION UP to 395FT: With a single Cat5e/6 cable, you can easily extend HDMI audio/video signals for up to 395ft. Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver with an HDMI cable.
· NETWORK DISTRIBUTION with MULTIPLE DISPLAYS: Navceker HDMI EXTENDER supporting Point-to-Point, Point-to-Many connection for multiple HDMI video sources displaying over CAT5e/6/7 cable up to 120M HDMI signal. Perfect for church services, sports bars, exhibitions, advanced home theater set ups.( Cascade connect up 12pcs of 120m at most)
· Support up to 4K@30hz resolution, transmission distance up to 120m, Support DTS/Dolby/LPCM audio format, Data transfer speed 10.2 Gbps. For better picture quality and longer distance transfer, we recommend to use Cat 6 or Cat 7 cable.
· IR REMOTE CONTROL: one directional IR control from RX side to TX side, Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that Forward commands over a CAT5e/6 cable more convenience.
· No software is required, plug and paly. One year warranty from Navceker.
Specifications:
Length of CAT-5E/CAT-6 cable between Rx and TX: up to 120 meters
HDMI input and output : 4K/1080p/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/LPCM
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Output HDMI cable distance: ≤15m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current : 200mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55℃)
Connection and operation:
1.Connect HDMI source device with transmitter by one HDMI cable, the cable max length is 15 meters.
2.Connect HDMI display device with receiver by one HDMI cable, the cable max length is 15 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 120 meters.
4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5.Connect the power supply to the TX and RX.
6.LED indicator:When a signal is input to work, steady blue light.

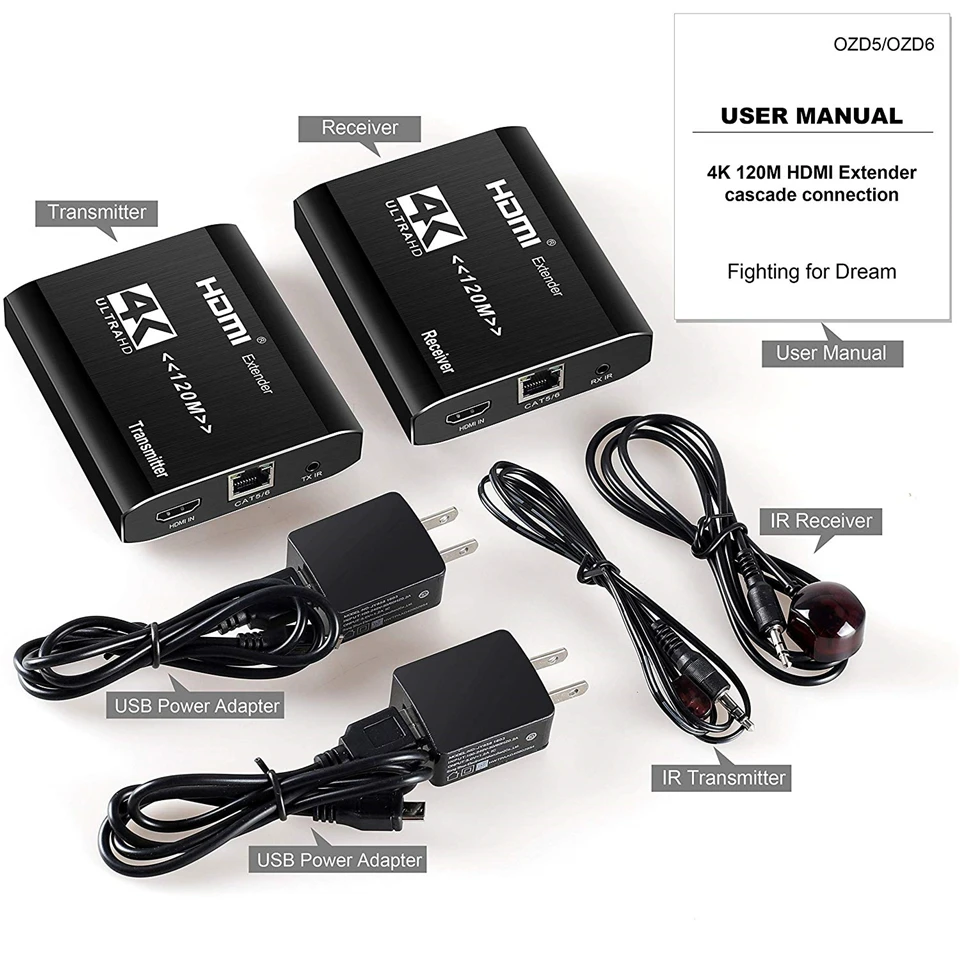

The package includes:
1. HDMI Extender Transmitter 1 PCS
2. HDMI Extender Receiver 1 PCS
3. IR cable 2 PCS
4. 5V/1A Power adapter 2 PCS
5. User Manual 1 PCS
Check This Video Reviews 6 Best HDMI Over Ethernet Extenders 2020
Check This Video Reviews How To Choose The Right HDMI Extender
Best Price Comparison With 2020 Best 4K HDMI Extender Transmitter Receiver Over Cat5e/Cat6 RJ45 Ports HDMI Extender Loop 120m HDMI Extender IR For PS4 HDTV

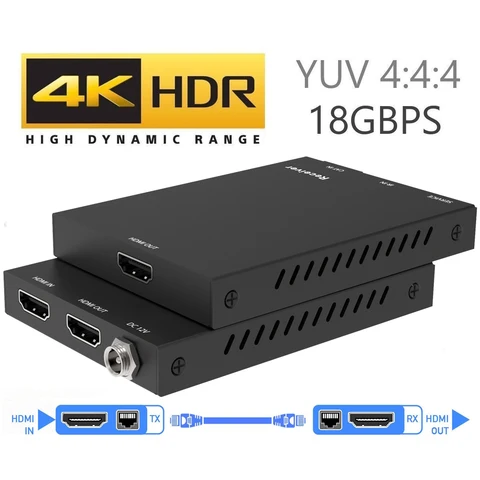

2020 4K 60Hz HDMI 2.0 Extender 50m Support 18Gbps & Loop Out HDMI Extender with IR 4K HDMI to RJ45 Extender Transmitter Receiver
Buy Now On Aliexpress

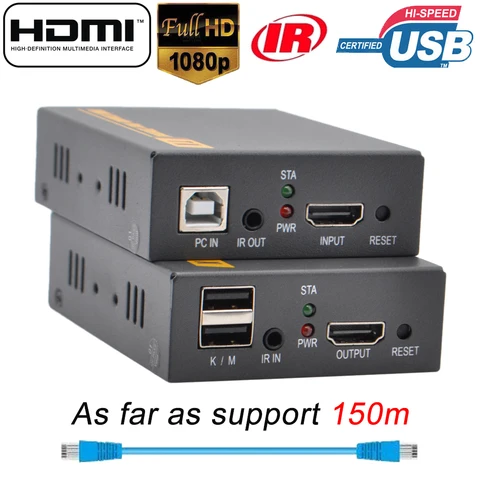

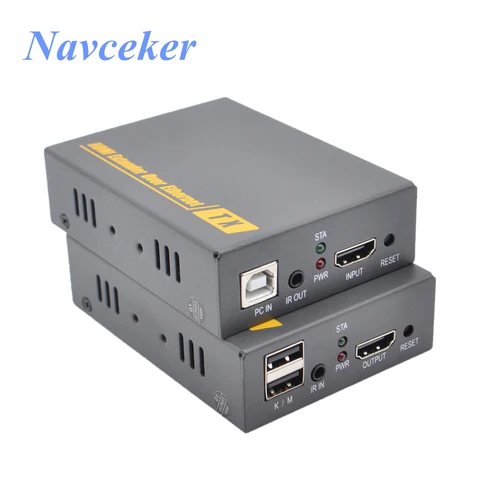

2020 HD HDMI KVM Extender Over TCP IP Support IR Network IP KVM Extender USB HDMI 150M Over UTP/STP RJ45 KVM Extender CAT5 CAT6
Buy Now On Aliexpress

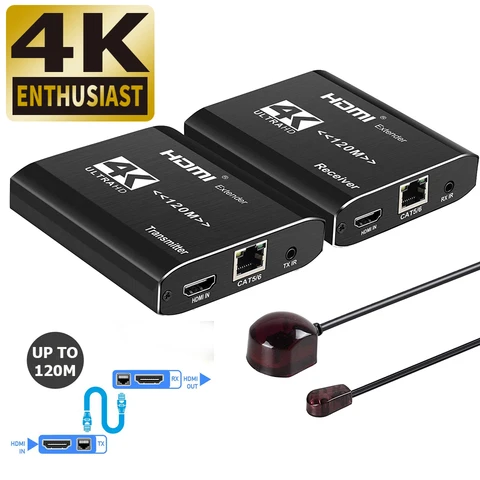

Navceker 120m HDMI Extender 4K IR Transmitter HDMI Extender RJ45 with Loop Out Cascade HDMI Extender Over Cat6 For PS4 Monitor
Buy Now On Aliexpress
2020 H.264 150m HDMI KVM Extender Over IP Network HDMI USB Extender Over RJ45 USB KVM Extender HDMI By Cat5e Cat6 For HDTV DVD
Buy Now On Aliexpress

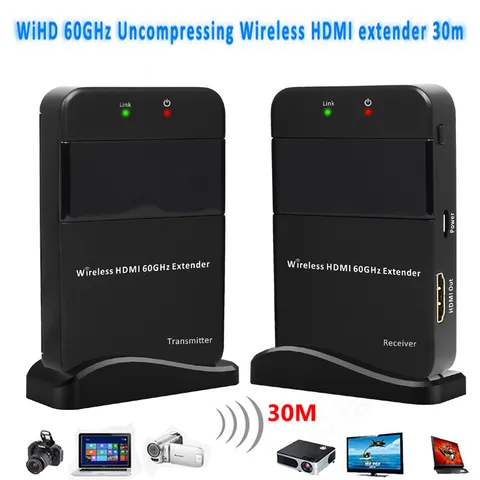

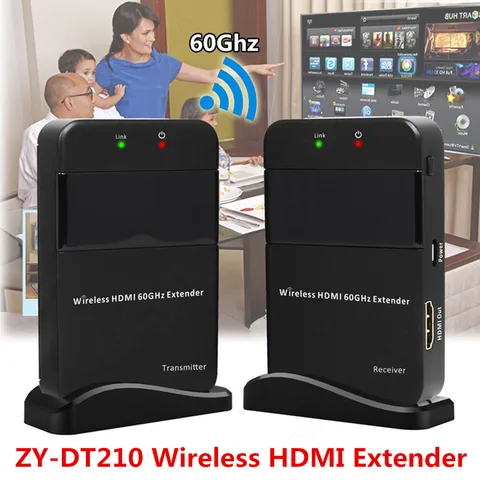

60GHz Wireless HDMI Transmitter 4K 1080P HDMI Wireless Video Transmission Extender 100ft Wireless HDMI Transmitter Receiver Kit
Buy Now On Aliexpress
2020 4K 60Hz KVM Switch HDMI 2 Port HDMI KVM Switch USB PC Computer KVM Switch Keyboard Mouse Switcher Box for Laptop,PS4,Xbox
Buy Now On Aliexpress
ZY-DT103KM HD USB HDMI KVM Over IP Extender 20~60 KHz IR RJ45 KVM Extender CAT5 CAT6 By UTP 500ft KVM Extensor HDMI Over IP/TCP
Buy Now On Aliexpress
Full HD HDMI Wireless Video Transmission Extender 100ft Wireless HDMI Transmitter Receiver Kit 60GHz Wireless HDMI Transmissor
Buy Now On Aliexpress

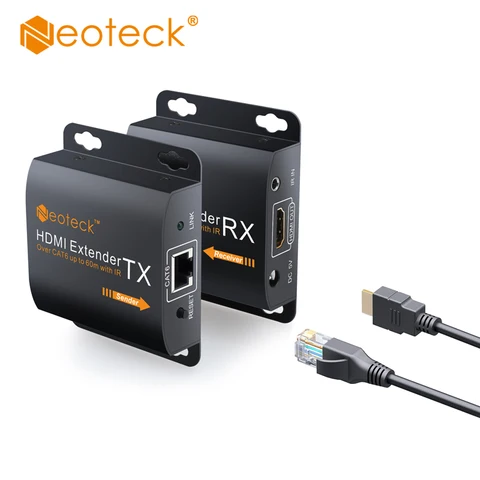

Neoteck 1080P 60m HDMI Extenders HDMI Repeater Over Cat 6 Cat 7 Ethernet Cables With IR Function Rj45 Transmitter TX/RX Extender
Buy Now On Aliexpress
2020 4K 60Hz HDMI 2.0 Extender 50m Support 18Gbps & Loop Out HDMI Extender with IR 4K HDMI to RJ45 Extender Transmitter Receiver
Buy Now On Aliexpress

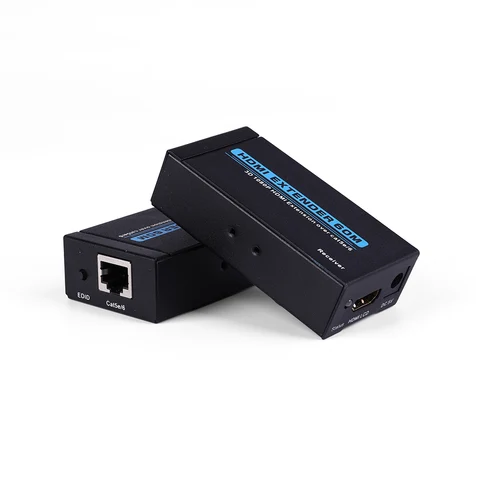

60M HDMI Extender 1080p 3D HDMI Transmitter Receiver over Cat 5e/6 RJ45 Ethernet Converter US EU Plug
