| Navceker 4K 1x4 HDMI 2.0 Splitter HDR HDMI Splitter 1x2 4K HDMI Splitter HDCP 2.2 1080P HDMI Splitter Switcher for PS4 Apple TV |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -62% |
| Product id | 4000115039781 |
| Vendor | Navceker Official Store |
| Category | - Uncategories |
Description :
 |  |  |
 |  |  |
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
Navceker 4K 1x4 HDMI 2.0 Splitter HDR HDMI Splitter 1x2 4K HDMI Splitter HDCP 2.2 1080P HDMI Splitter Switcher for PS4 Apple TV
Description:

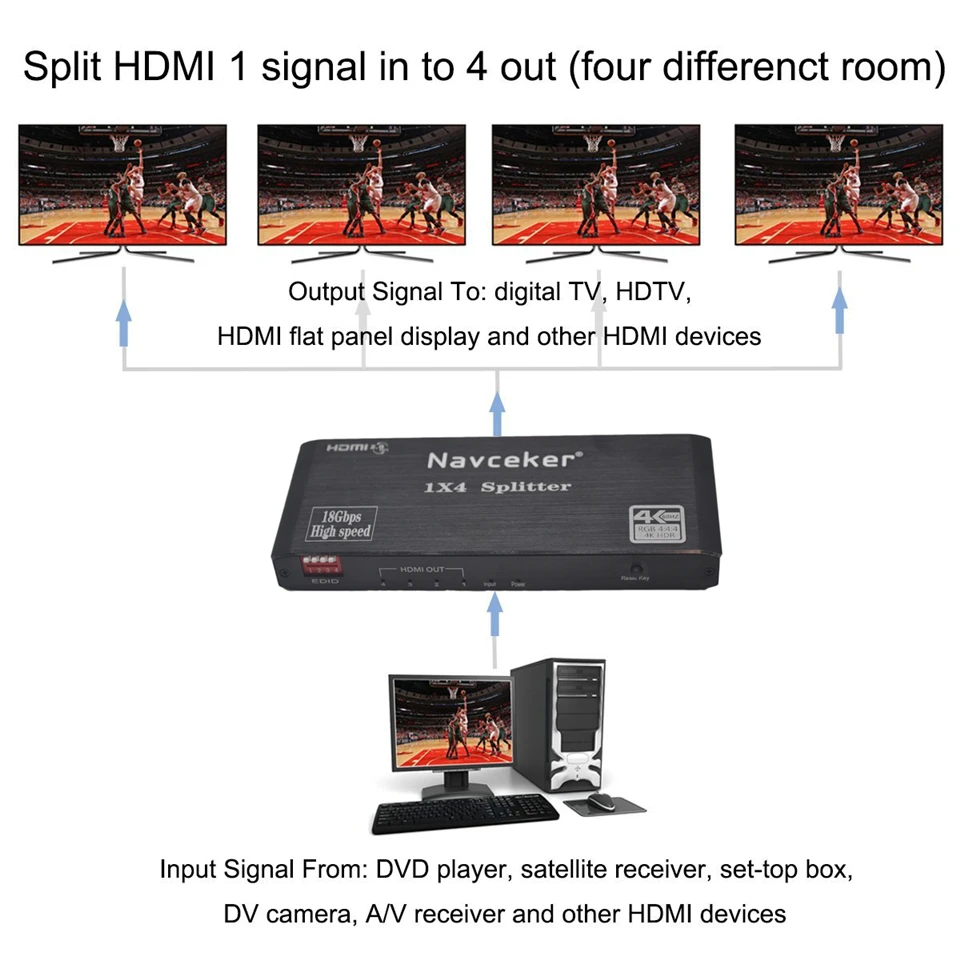

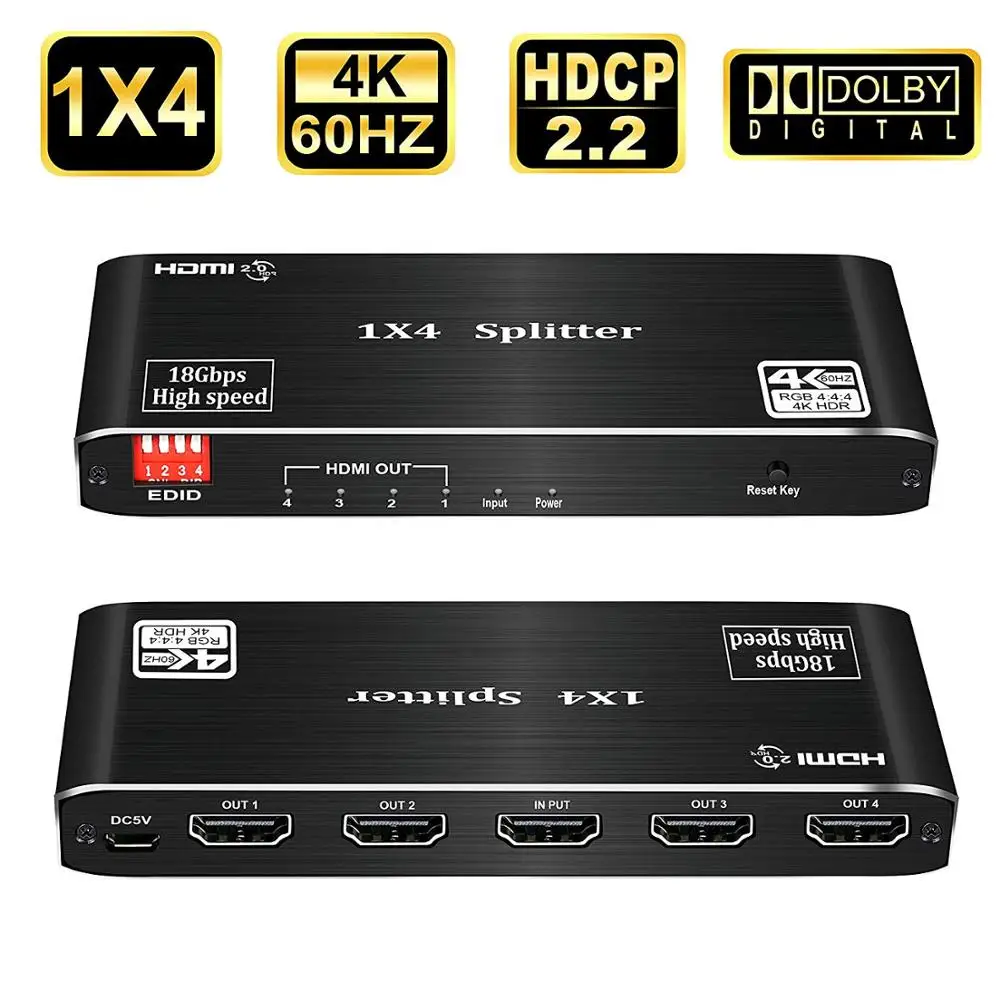

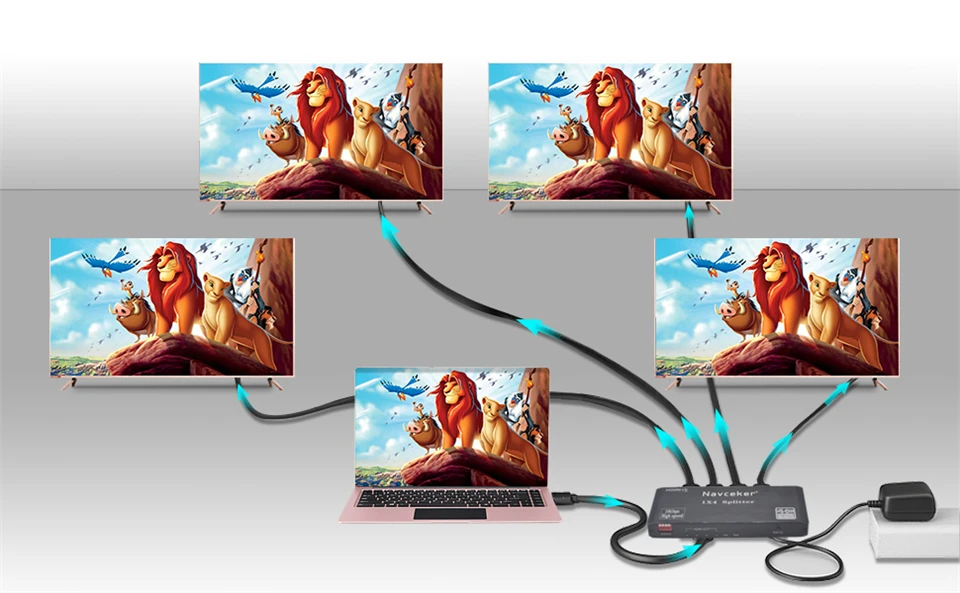

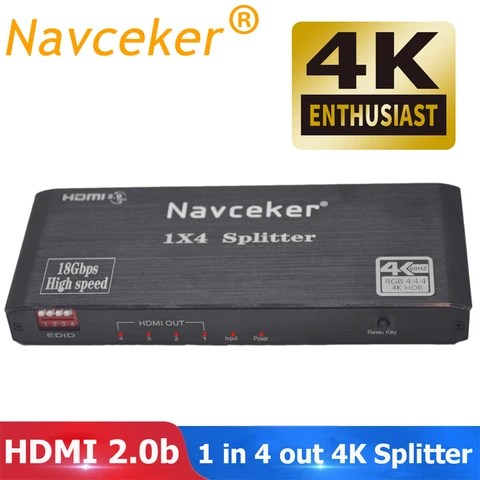

ZY-HS200, Navceker 1x2 1x4 HDMI 2.0b Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 4Kx2K@60Hz.
There are 2 models optional, different model has different interface and appearance, please choose suitable model before purchase:

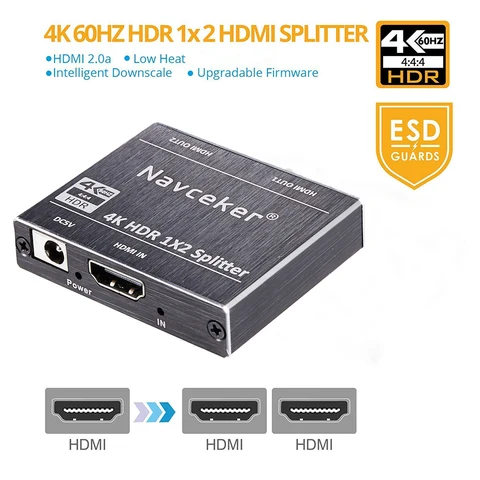

(1) The Black color is ZY-HS20B,HDMI 2.0b and HDCP 2.2,4K@60Hz 2 port HDMI splitter 1x2 with RGB4:4:,3D and HDR10 .Not support EDID mode.
(2) The Red color is ZY-HS200,HDMI 2.0b and HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D , HDR10 and EDID mode.
Features:
- Fully HDMI2.0b Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.

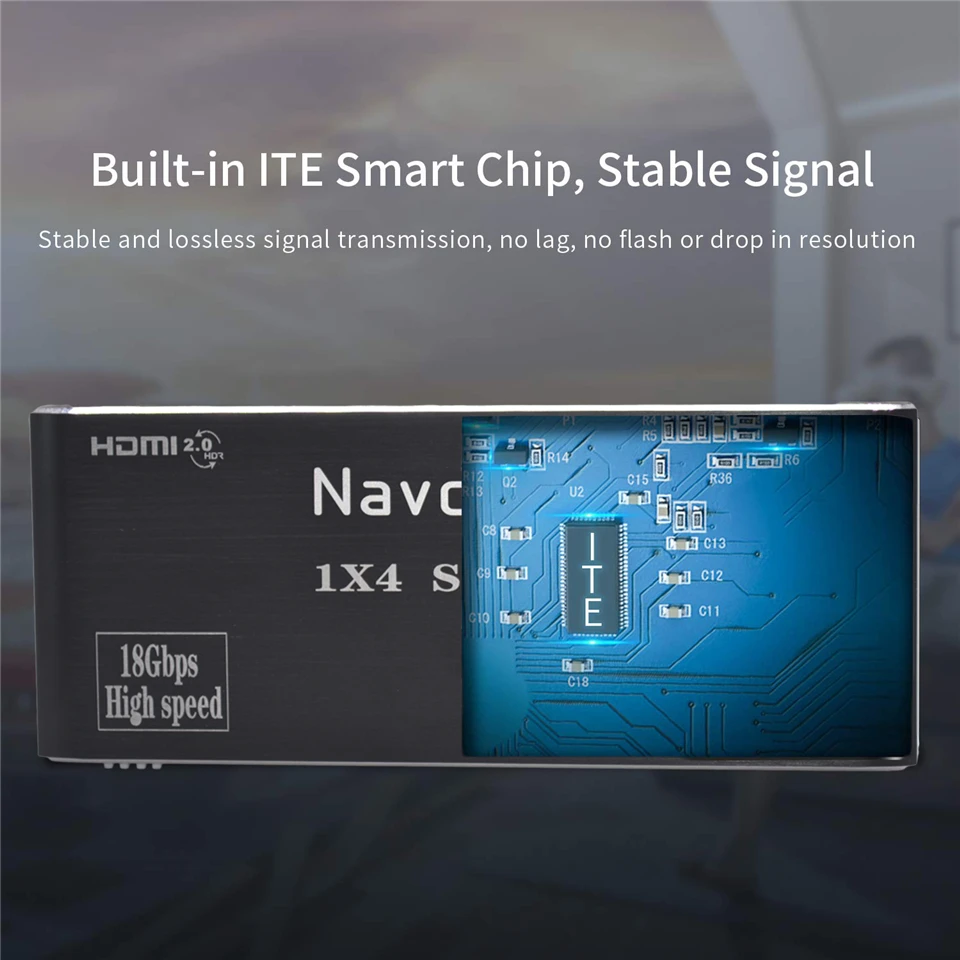

- On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 ,HDMI 2.0a and HDMI 2.0b specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4/2.2 specification.
- Wide Frequency Range: 25MHz-600MHz.
- Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
- Supports jitter Clean capability for more cascadable stages.
- Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
- Supports standard Audio,DSD Audio and HD(HBR)Audio.
- Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.
- Supports conversion of HDMI signal to DVI/HDMI signal.
- Supports HDCP 1.4 to HDCP2.2 conversion.
- Supports HDCP 2.2 to HDCP1.4 conversion.
- Supports on-chip 512 byte E-DDC EDID RAM for input port.
- Supports hot plug-play.
- Support 18.5 Gbps rate, CEC and HDR 10.

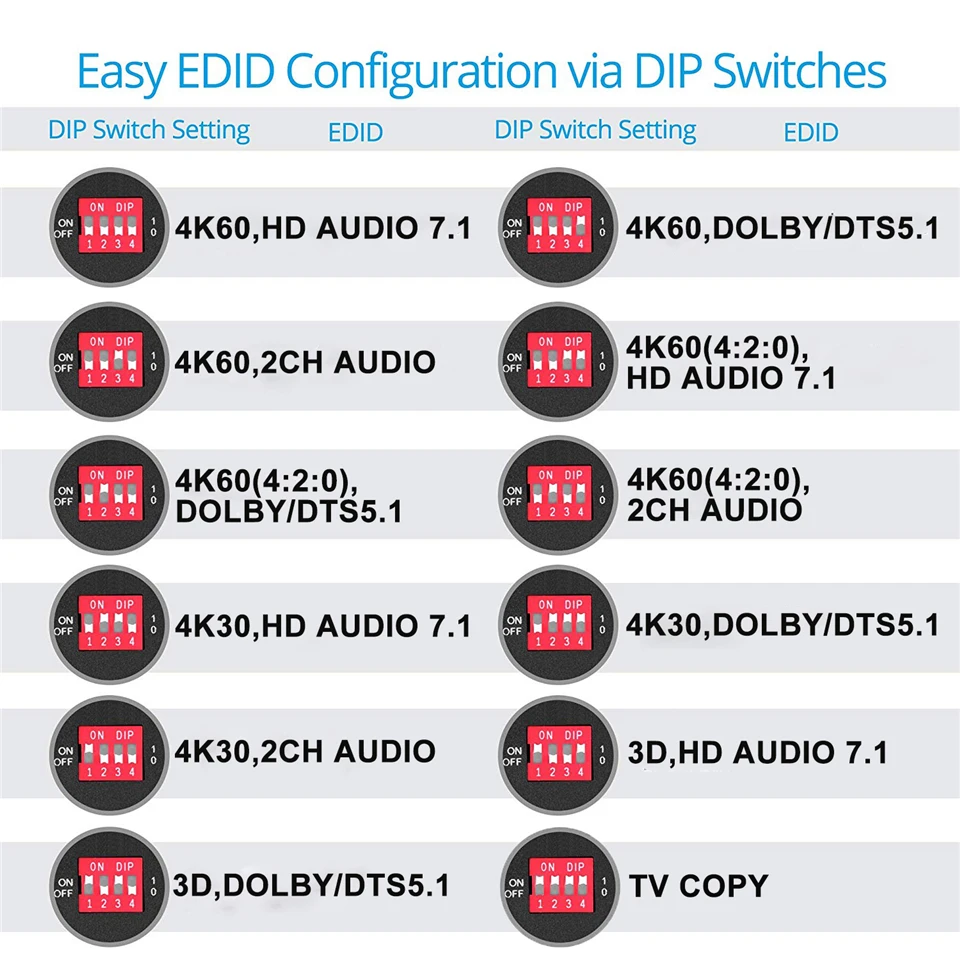

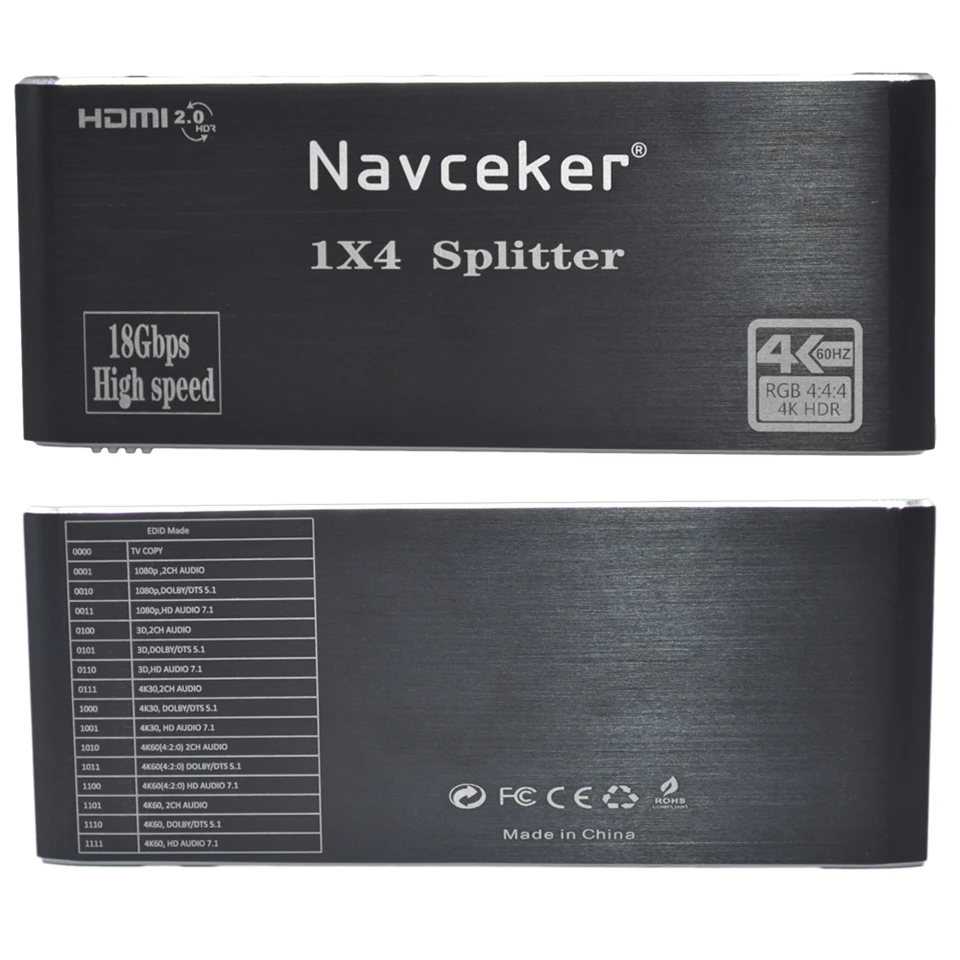

- Support 16 kinds of EDID Mode.

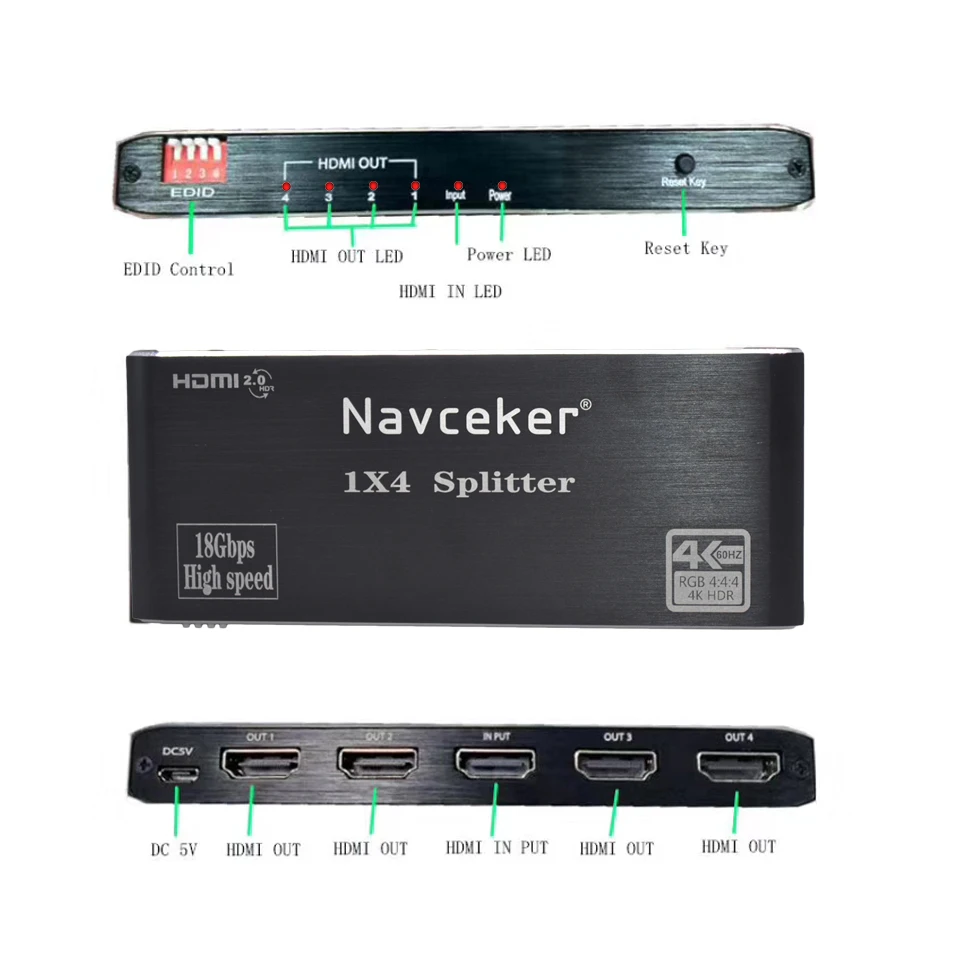

- Support Mode：LED indicates signal and power mode
- Support Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support AWG26 HDMI 2.0 cable length: Up to 50 ft
- Cascadable to make more than 4 output ports.
- Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.
- Power supply(please refer to technical parameter).
Note:
For optimum performance, we recommend using high quality, certified HDMI cables (28AWG or 26AWG) in lengths up to 5m / 16.4ft for all connections.
High-speed HDMI cables are required for 4K and 1080p resolutions.
Specification:
HDMI version…………………………………………….……………HDMI 2.0b, HDCP 2.2
Resolution..........24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports video color format ....……...……..….…........24bit/deep color 30bit, 36bit, 48bit
Supports audio format…….........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………….…….......………............……….……600MHz
Max band rate…………………….………………….….…………....................……18.5Gbps
Input/Output TMDS signal ………….…………………………..…...................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …………………………………………….....................……..5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………≤15m AWG26 HDMI standard cable
Output cable distance…………………………….………...............≤15m AWG26 HDMI standard cable
Max working current………………………………..…………...................………………1200mA
Power adapter format Input..……………........................AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating Temperature range……..………...................…….…….………………………(-15 to +55℃)
Operating Humidity range………………………….….………................5 to 90%RH (No Condensation)
Dimension (L x W x H)………………………….….………...................…........................110x60x20(mm)

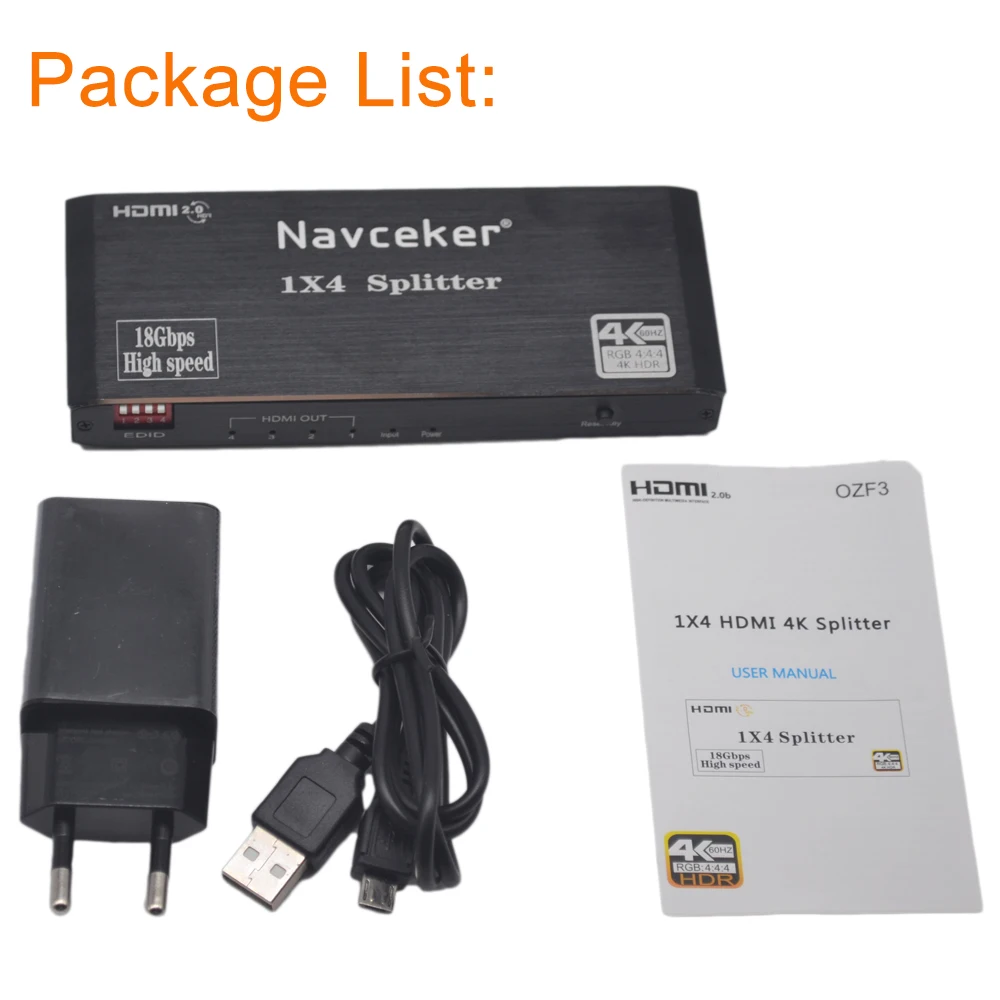

Packaging contents
1.1x4 1x2 HDMI Splitter x1
2.Power Adaptor x1
3.User Manual x1
Check This Video Reviews 2019 Best HDMI Splitter 1x2 HDMI 2.0 Splitter 4K HDMI Video Audio Splitter Support CEC HDR 4K 60H...
Check This Video Reviews 10 Best HDMI Splitters 2018
Best Price Comparison With Navceker 4K 1x4 HDMI 2.0 Splitter HDR HDMI Splitter 1x2 4K HDMI Splitter HDCP 2.2 1080P HDMI Splitter Switcher for PS4 Apple TV
2020 Best HDMI Splitter 1x2 HDMI 2.0 Splitter 4K HDMI Video Audio Splitter Support 3D HDR 4K 60Hz Splitter HDMI 1x4 For Laptop
Buy Now On Aliexpress
ProAV 4K UHD HDMI Splitter 2.0 1x2 HDMI 2.0 Splitter HDCP 1.4 HDR Splitter HDMI 2.0 4K HDMI2.0 Splitter For Blu-ray DVD PS3 PS4
Buy Now On Aliexpress
Navceker 18.5 Gbps HDMI Matrix 4x2 4K@60Hz HDMI Switch Splitter with SPDIF and L/R 3.5mm HDR HDMI Switch 4x2 Support HDCP 2.2 3D
Buy Now On Aliexpress
2020 Best 4K 60Hz HDMI 2.0 Switch Remote 2x1 HDR HDMI Switch 4x1 HDMI Switch PS4 Support ARC & Toslink Switch HDMI 2.0 For XBox
Buy Now On Aliexpress
4K@60Hz UHD HDR HDMI 2.0 Splitter 1x2 1 In 2 Out HDMI 2.0 HDCP 2.2 Splitter Switch Box HDMI Splitter 2.0 For HDTV PS3 Apple TV
Buy Now On Aliexpress
2020 4K HDMI Matrix 4x2 Switch Splitter Support HDCP 2.2 IR Remote Control HDMI Switch 4x2 Spdif 4K 30Hz HDMI 4x2 Matrix Switch
Buy Now On Aliexpress
2020 Best 4K@60Hz HDMI 2.0 Switch Remote 4x2 HDMI Switcher Audio Extractor With ARC & IR Switch HDMI 2.0 For PS4 Apple TV HDTV
Buy Now On Aliexpress

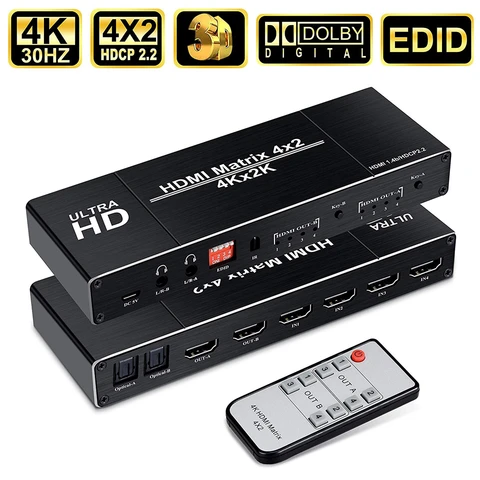

2020 Best 4K 4x2 HDMI Matrix Switch Splitter Switcher EDID Setting HDMI Switch 4x2 with Dual SPDIF & Optical Toslink HDMI Matrix
Buy Now On Aliexpress

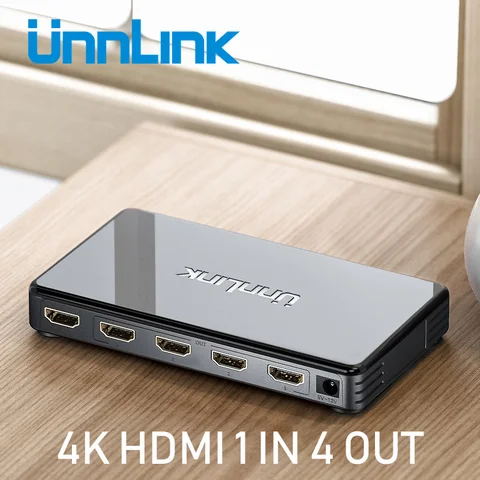

Unnlink HDMI Splitter 1X4 UHD4K@30Hz FHD1080P60 HDMI 1 In 4 Out for LED Smart TV monitor projector mi box3 ps4 xbox one computer
Buy Now On Aliexpress
Greek IPTV M3U Subscription 5500+ Live Streaming Stable Sports for Greece/UK/German/Cyprus/Arabic
Buy Now On Aliexpress

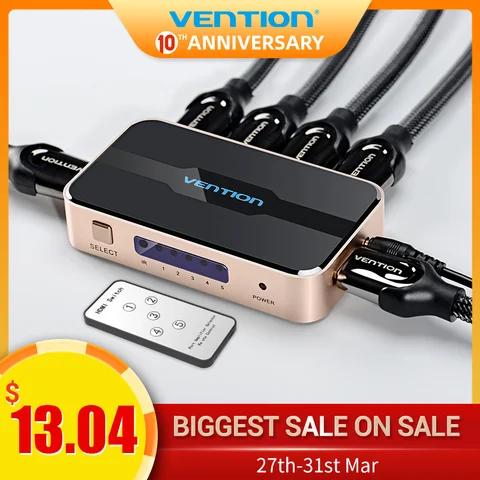

Vention HDMI Splitter 5 Input 1 Output HDMI Switch 5x1 for XBOX 360 PS4 Smart Android HDTV 4K 5 in 1 out HDMI Switcher Adapter
